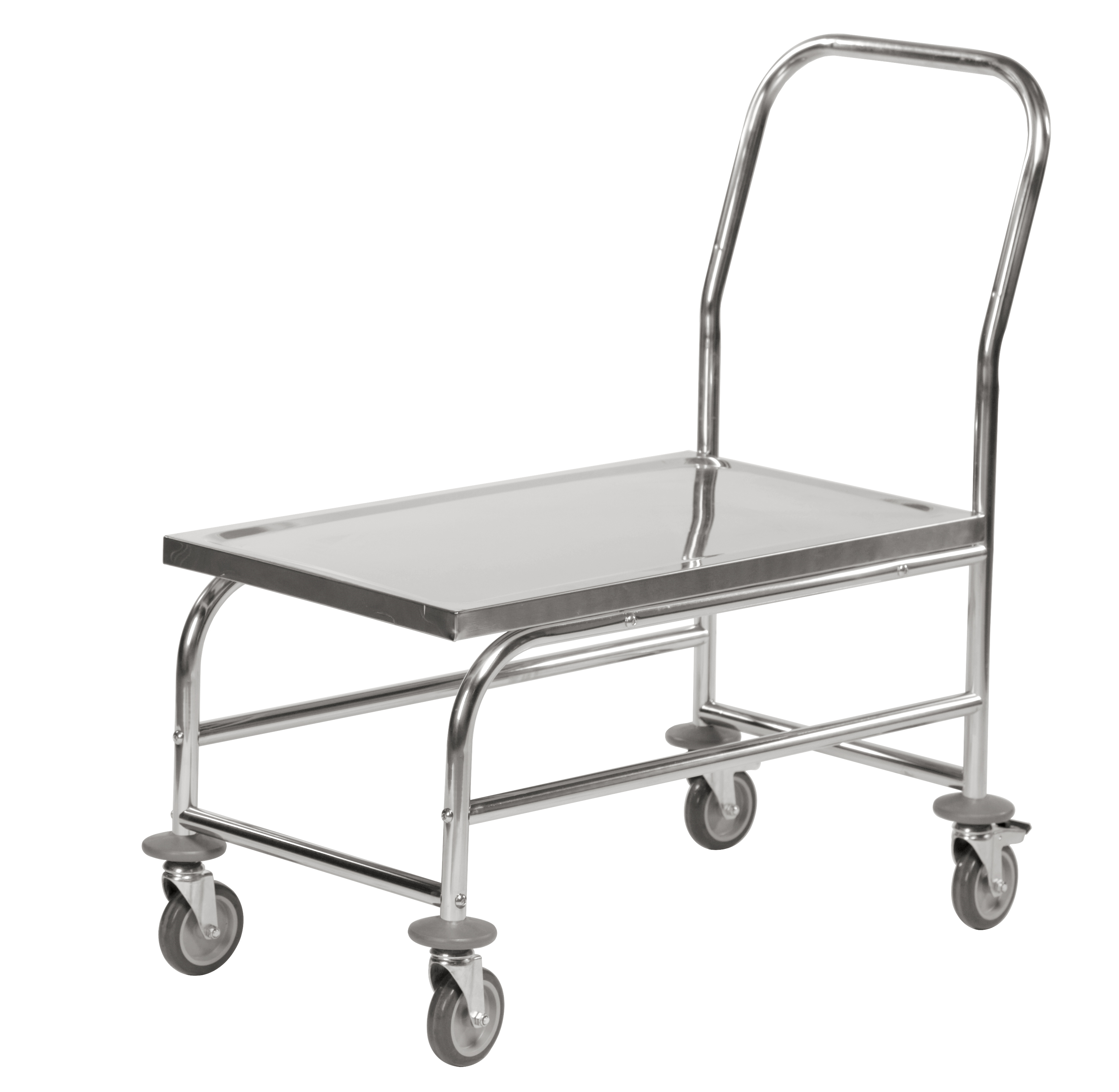

KM60363 | Platform trolley, C2

Smart stainless platform trolley with a lot of areas of application.

Height to platform 470 mm
Platform 735 x 390 mm
4 swivel castors 2 with brakes, precision ballbearings 100 mm
Capacity: 100 kg
All Stainless - even the castors

General information about stainless steel classifications
According to ISO 9223
C2 - EN 1.4372, AISI 201, 18/0
C3 - EN 1.4301, AISI 304, 18/8

Add to productsheet

In stock

145 pcs.

FIND YOUR DEALER

Variations

	ART.NO.	Colour	L x W X H (mm)	Type of castors	Braked castors	Load (kg)	Weight (kg)	In stock
	KM60363	Stainless	850 x 490 x 925	4 swivel 2 with brake	Yes	100	10.8	145

Product information

Carton Dimensions - 840x485x160mm
Length - 850 mm
Width - 490 mm
Height - 925 mm
Static load - 100 kg
Freight volume - 0.07 m3
Gross weight - 10.8 kg
Net weight - 9.3 kg
Shelf capacity - 100 kg
Shelf dimensions (length) - 770 mm
Shelf dimensions (width) - 450 mm
Height to first shelf - 470 mm
Height to top shelf - 470 mm
Heigth to handle - 925 mm
Type of castors - 4 swivel 2 with brake
Castors diameter (mm) - 100

Documents

Assembly instructions

CE document

Castors

ART.NO.	Description	Diameter (mm)
1470PAO100P30-11	Wheel diameter 100mm Width of Tread 25mm Centre hole 11mm Overall height 125mm	100
1477PAO100P30-11	Wheel diameter 100mm Width of Tread 25mm Centre hole 11mm Overall height 125mm	100

Alternative castors

ART.NO.	Description	Diameter (mm)
KM1000-5	Replacement castors 125 mm	125
KM1000-4	Replacement castors 100 mm	100
KM1000-7	Replacement castors 125 mm	125
KM1000-6	Replacement castors 100 mm	100
KM1000-8	Replacement castors 125 mm	125
