Start / Products / Picking trolleys/E-commerce / Serie 168

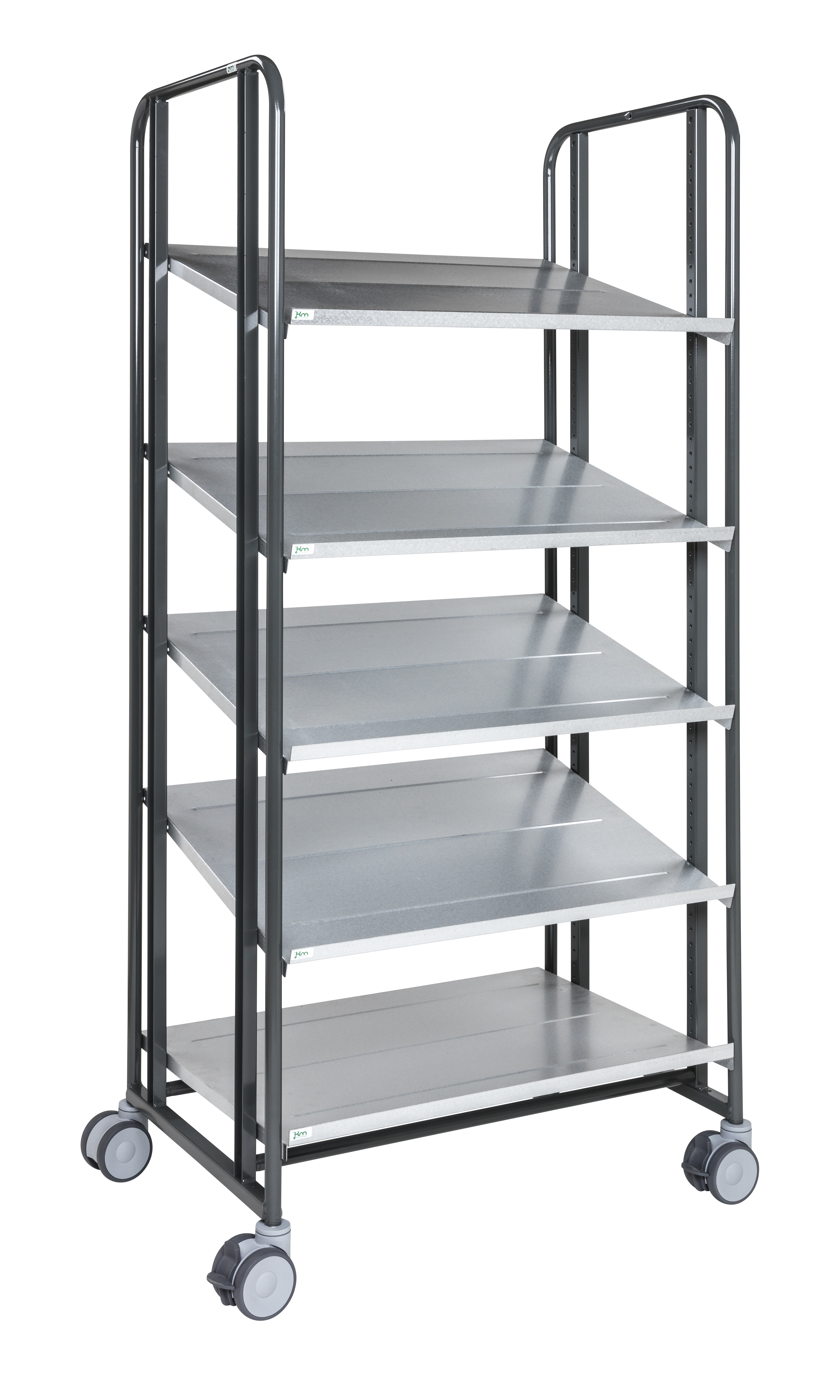

KM168-5HM-ERGO | Serie 168

Powdercoated. Adjustable shelves. Interior dimensions: 820 x 540 x 1660 mm. 5 shelves. Shelf capacity: 50 kg. Castors: 4 swivel 2 with brake. Castors diameter: 100 mm.

Add to productsheet

In stock

24 pcs.

FIND YOUR DEALER

Variations

ART.NO.	Colour	L x W X H (mm)	Type of castors	Braked castors	Load (kg)	Weight (kg)	In stock
KM168-3LL-ERGO	Dark Grey	1277 x 638 x 1300	4 swivel 2 with brake	Yes	250	47	60
KM168-3LM-ERGO	Dark Grey	877 x 638 x 1300	4 swivel 2 with brake	Yes	250	40	69
KM168-3LS-ERGO	Dark Grey	477 x 638 x 1300	4 swivel 2 with brake	Yes	250	30	32
KM168-5HL-ERGO	Dark Grey	1277 x 638 x 1850	4 swivel 2 with brake	Yes	250	60	26
KM168-5HM-ERGO	Dark Grey	877 x 638 x 1850	4 swivel 2 with brake	Yes	250	47	24
KM168-5HS-ERGO	Dark Grey	477 x 638 x 1850	4 swivel 2 with brake	Yes	250	37.7	34

Product information

Carton Dimensions - 1750x590x90mm
Length - 877 mm
Width - 638 mm
Height - 1850 mm
Inner length - 820 mm
Inner width - 540 mm
Inner height - 1660 mm
Static load - 250 kg
Freight volume - 0.18 m3
Gross weight - 47 kg
Net weight - 45.17 kg
Number of shelves - 5
Shelf capacity - 50 kg
Shelf dimensions (length) - 820 mm
Shelf dimensions (width) - 600 mm
Type of castors - 4 swivel 2 with brake
Castors diameter (mm) - 100
RAL Number - 7043

Documents

Assembly instructions

Castors

ART.NO.	Description	Diameter (mm)
5920UAP100L51-HJUL		100
5925UAP100L51-BROMS		100

Accessories

ART.NO.	Description	Weight (kg)
KM168-H-ERGO	Serie 168 Handle	0.5
KM168-HM-ERGO	Serie 168 Shelf	5.49
KM168-RP	Serie 168 Roller conveyers	2.8
KM07401-9	Serie 168 Ladder	9.5
KM168-HA	Serie 168 Shelf dividers	1.7
