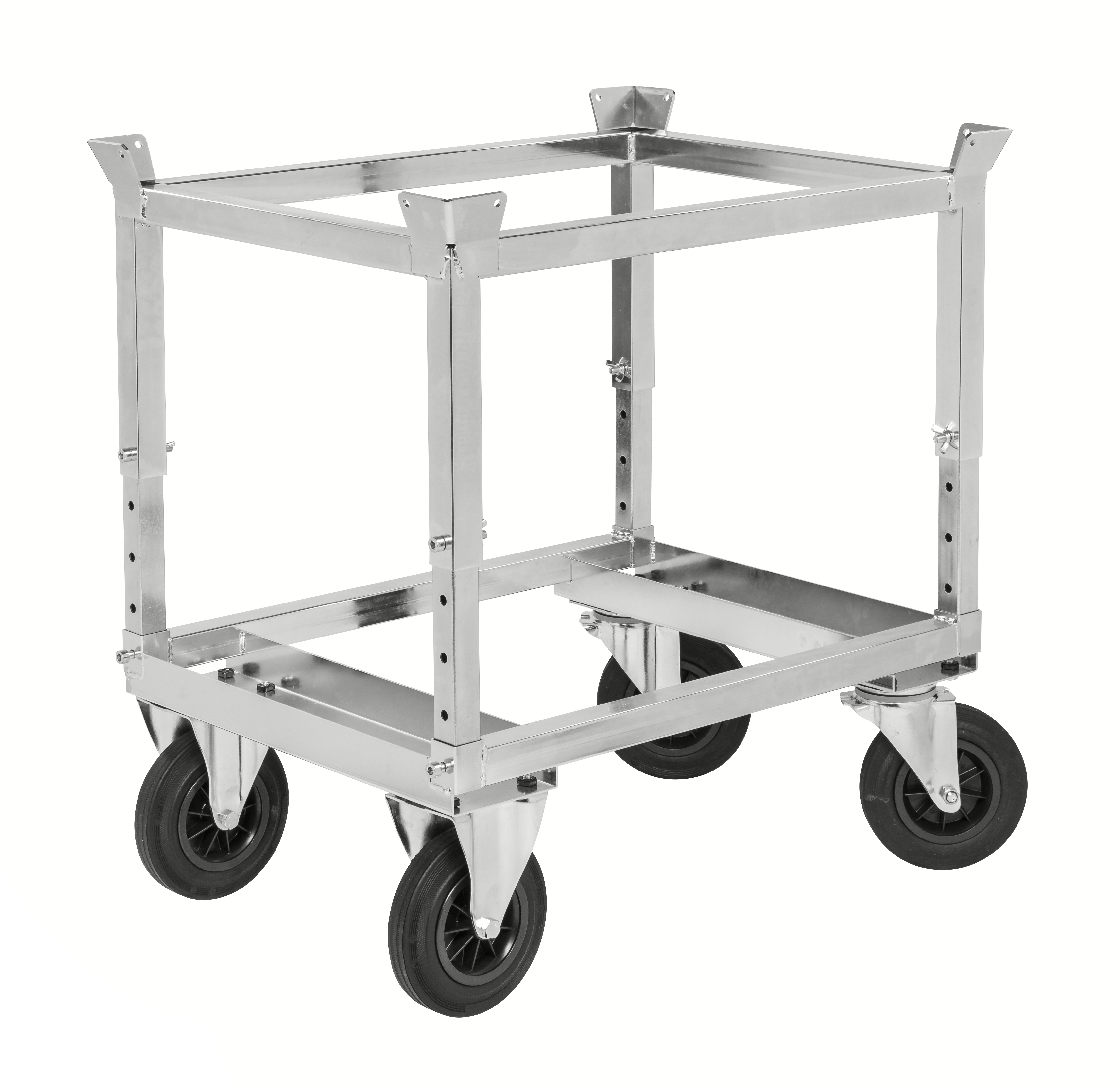

KM222-EPHB | Pallet trolley with pallet holder
  • 5 years warranty on all of our Trolleys
  • Braked castors

KM222-EPHB | Pallet trolley with pallet holder

Our pallet trucks are suited for pallets with the measurement 800x600mm, 1200x800 mm & 1200x1000 mm. Available in diffrent models and colors, with brakes or no brake.

In stock

20 pcs.

FIND YOUR DEALER
  • Industry & Workshops
  • Logistic & Warehouse

Variations

  ART.NO. Colour L x W X H (mm) Type of castors Braked castors Load (kg) Weight (kg) In stock
Pallet trolley with pallet holder KM217-EP KM217-EP Electro galvanised 1246 x 846 x 355 2 fixed 2 swivel No 800 26 97
Pallet trolley with pallet holder KM217-EPB KM217-EPB Electro galvanised 1246 x 846 x 355 2 fixed 2 swivel with brake Yes 800 26.5 97
Pallet trolley with pallet holder KM221-EP KM221-EP Electro galvanised 1246 x 846 x 700 2 fixed 2 swivel No 800 40 114
Pallet trolley with pallet holder KM221-EPB KM221-EPB Electro galvanised 1246 x 846 x 700 2 fixed 2 swivel with brake Yes 800 40.5 113
Pallet trolley with pallet holder KM221-EPH KM221-EPH Electro galvanised 846 x 646 x 700 2 fixed 2 swivel No 800 30.25 5
Pallet trolley with pallet holder KM221-EPHB KM221-EPHB Electro galvanised 846 x 646 x 700 2 fixed 2 swivel with brake Yes 800 30.93 5
Pallet trolley with pallet holder KM222-EP KM222-EP Electro galvanised 1246 x 846 x 705 2 fixed 2 swivel No 800 41.5 151
Pallet trolley with pallet holder KM222-EPB KM222-EPB Electro galvanised 1246 x 846 x 705 2 fixed 2 swivel with brake Yes 800 42 151
Pallet trolley with pallet holder KM222-EPH KM222-EPH Electro galvanised 846 x 646 x 704 2 swivel 2 fixed No 800 32.44 20
Pallet trolley with pallet holder KM222-EPHB KM222-EPHB Electro galvanised 846 x 646 x 704 2 fixed 2 swivel with brake Yes 800 33.11 20

Product information

  • Carton Dimensions - ingen kartong
  • Length - 846 mm
  • Width - 646 mm
  • Height - 704 mm
  • Static load - 800 kg
  • Freight volume - 0.2 m3
  • Gross weight - 33.11 kg
  • Net weight - 32.61 kg
  • Type of castors - 2 fixed 2 swivel with brake
  • Castors diameter (mm) - 200

Documents

Castors

ART.NO. Description Diameter (mm)
3478PVR200P63 Fixed castor, Fork made of pressed steel, bright zinc plated, blue passivated, wheel axle with nut, plate fitting. Wheel centre made of Polypropylene, Tread: solid rubber, black, roller bearin 200
3377PVR200P63 Swivel castor with total lock , housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, plate fitting. Wheel centre made of Polypropylene, Tread: solid rubber, black, roller bearing 200

Accessories

  ART.NO. Description Weight (kg)
Sign, A4 & A5 KMID-FA4S-01 KMID-FA4S-01 Sign, A4 & A5 0.88
Sign, A4 & A5 KMID-FA4L-01 KMID-FA4L-01 Sign, A4 & A5 0.92
Sign, A4 & A5 KMID-FA5L-01 KMID-FA5L-01 Sign, A4 & A5 0.51
