• 5 years warranty on all of our Trolleys

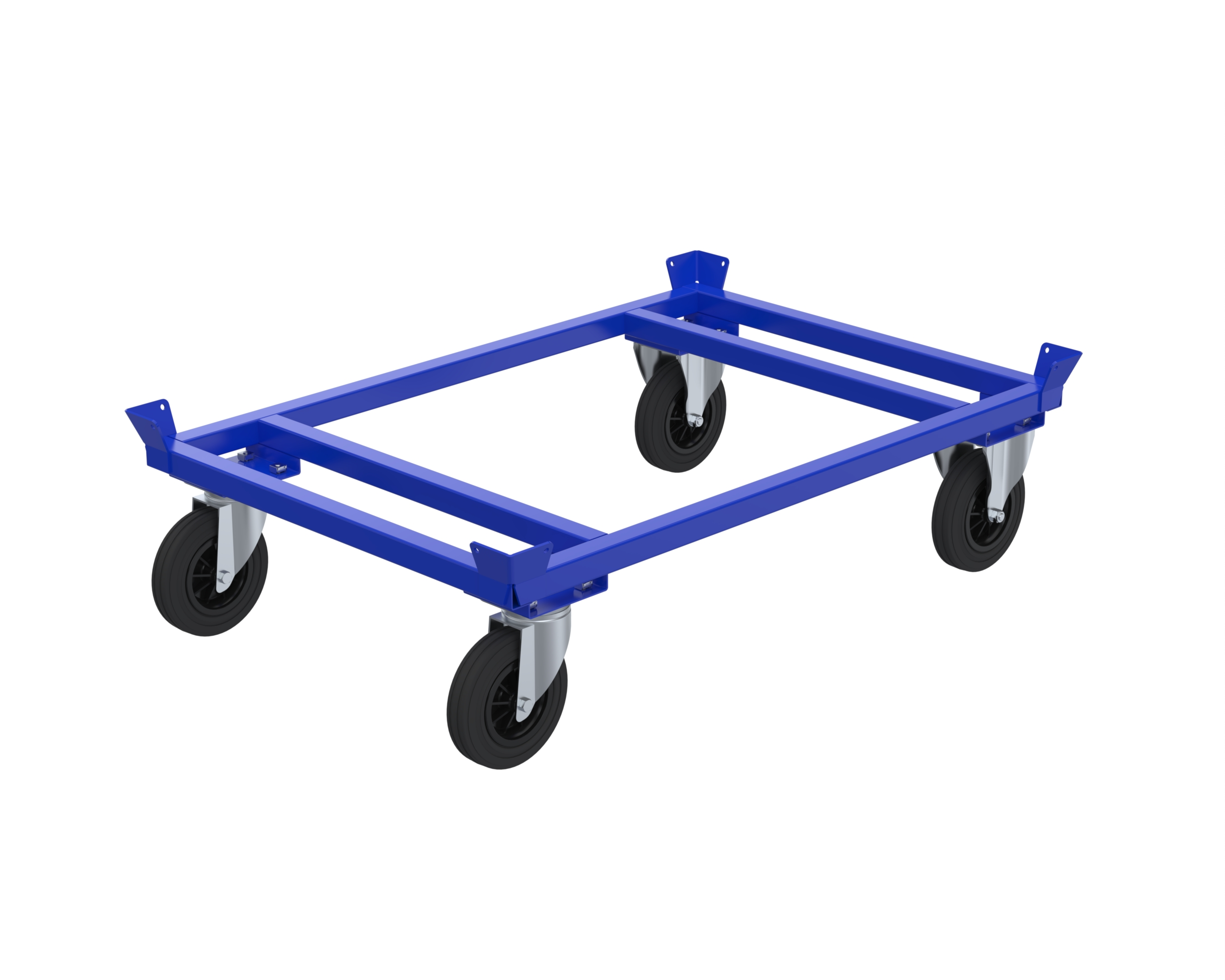

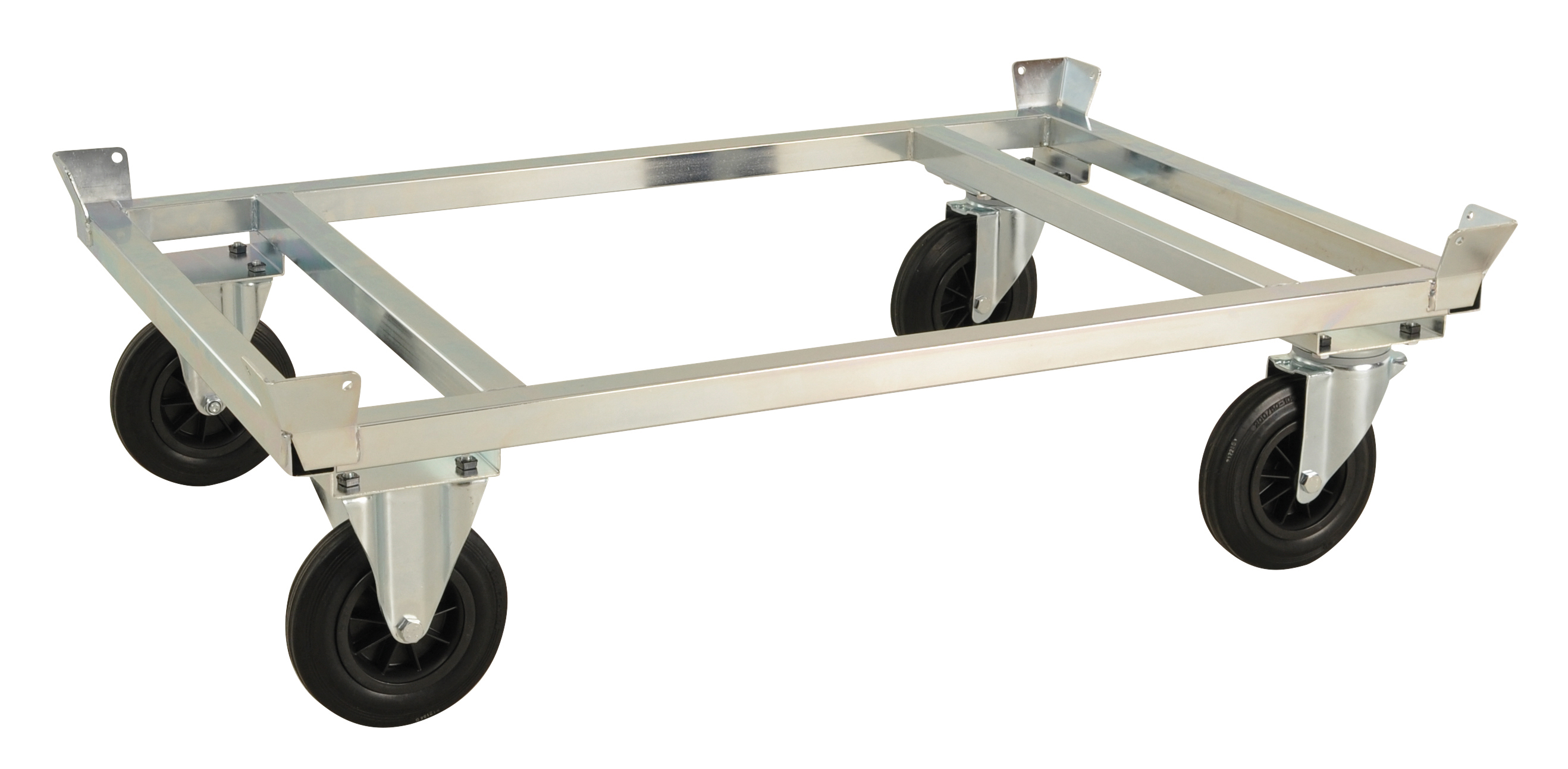

KM217-EP | Pallet trolley with pallet holder

Our pallet trucks are suited for pallets with the measurement 800x600mm, 1200x800 mm & 1200x1000 mm. Available in diffrent models and colors, with brakes or no brake.

Electro galvanised and all welded with pallet holder
Suited to EUR pallet 1200 x 800 mm
Height to platform 305 mm
2 fixed and 2 swivel castors of solid rubber 200 x 50 mm
Capacity: 800 kg

In stock

103 pcs.

FIND YOUR DEALER
  • Industry & Workshops
  • Logistic & Warehouse

Variations

  ART.NO. Colour L x W X H (mm) Type of castors Braked castors Load (kg) Weight (kg) In stock
Pallet trolley with pallet holder KM217-EP KM217-EP Electro galvanised 1246 x 846 x 355 2 fixed 2 swivel No 800 26 103
Pallet trolley with pallet holder KM217-EPB KM217-EPB Electro galvanised 1246 x 846 x 355 2 fixed 2 swivel with brake Yes 800 26.5 103
Pallet trolley with pallet holder KM221-EP KM221-EP Electro galvanised 1246 x 846 x 700 2 fixed 2 swivel No 800 40 100
Pallet trolley with pallet holder KM221-EPB KM221-EPB Electro galvanised 1246 x 846 x 700 2 fixed 2 swivel with brake Yes 800 40.5 99

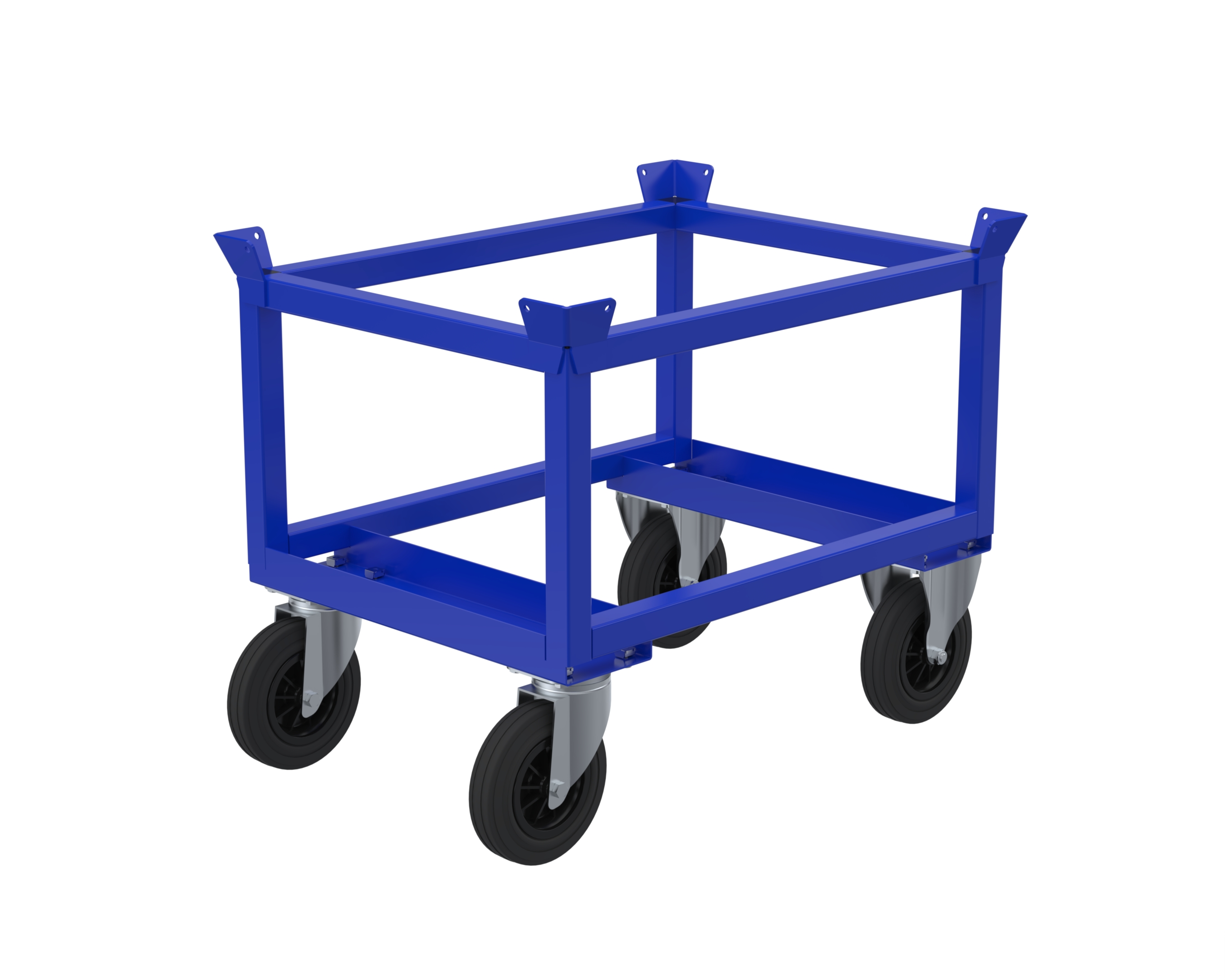

Pallet trolley with pallet holder KM221-EPH KM221-EPH Electro galvanised 846 x 646 x 700 2 fixed 2 swivel No 800 30.25 5
Pallet trolley with pallet holder KM221-EPHB KM221-EPHB Electro galvanised 846 x 646 x 700 2 fixed 2 swivel with brake Yes 800 30.93 5

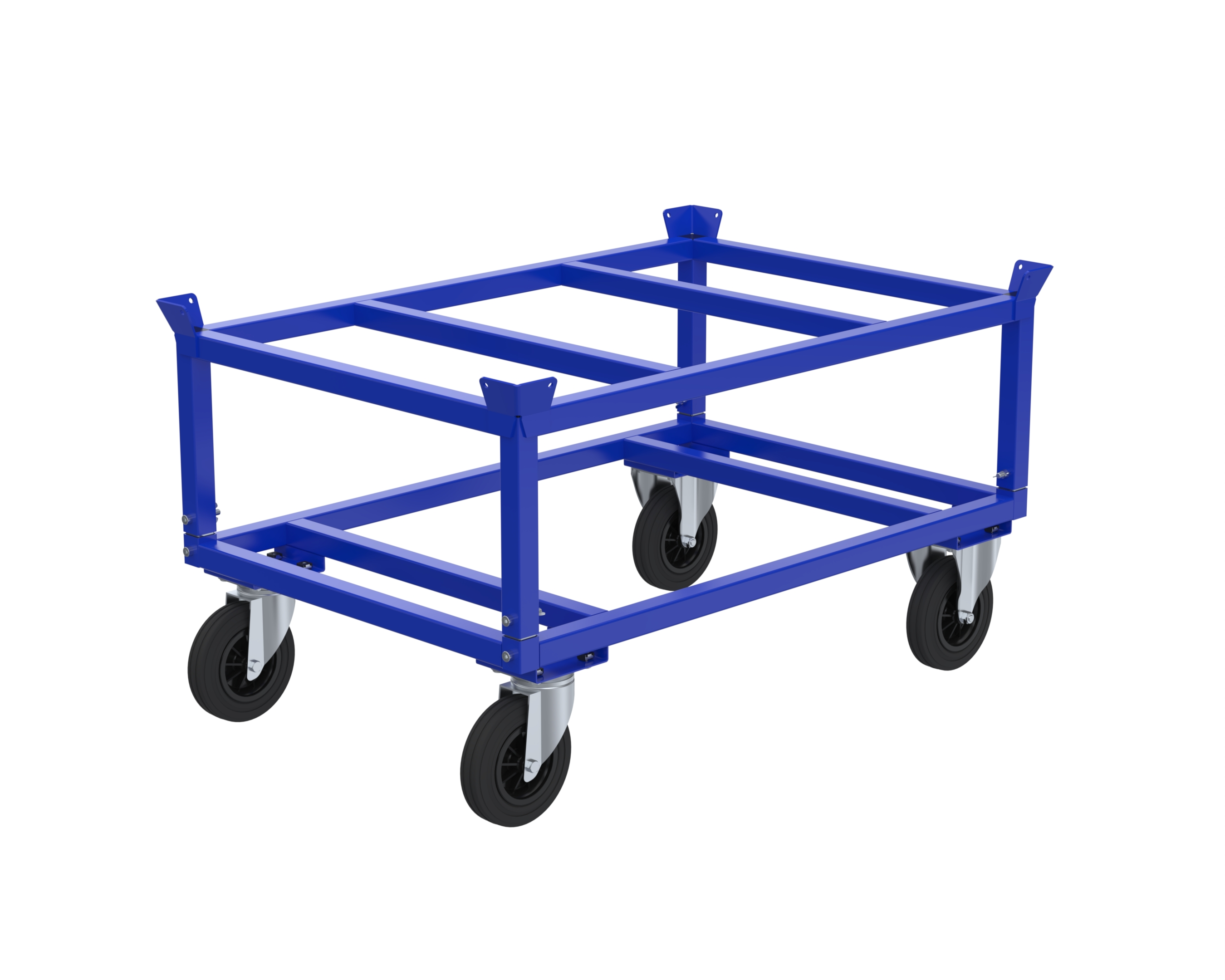

Pallet trolley with pallet holder KM222-EP KM222-EP Electro galvanised 1246 x 846 x 705 2 fixed 2 swivel No 800 41.5 73
Pallet trolley with pallet holder KM222-EPB KM222-EPB Electro galvanised 1246 x 846 x 705 2 fixed 2 swivel with brake Yes 800 42 73

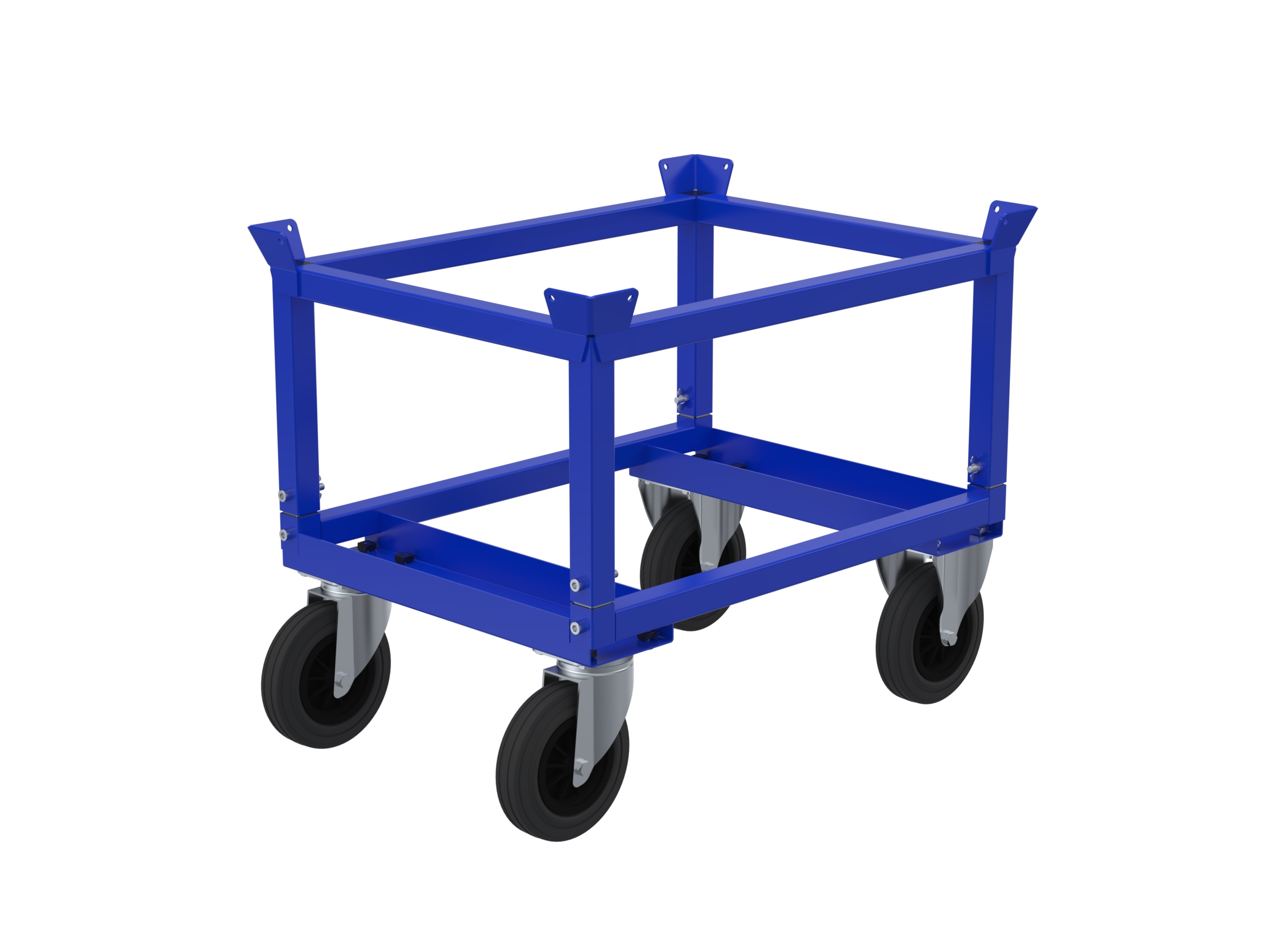

Pallet trolley with pallet holder KM222-EPH KM222-EPH Electro galvanised 846 x 646 x 704 2 swivel 2 fixed No 800 32.44 0
Pallet trolley with pallet holder KM222-EPHB KM222-EPHB Electro galvanised 846 x 646 x 704 2 fixed 2 swivel with brake Yes 800 33.11 0

Product information

  • Length - 1246 mm
  • Width - 846 mm
  • Height - 355 mm
  • Static load - 800 kg
  • Freight volume - 0.15 m3
  • Gross weight - 26 kg
  • Net weight - 25.5 kg
  • Type of castors - 2 fixed 2 swivel
  • Castors diameter (mm) - 200

Documents

Castors

ART.NO. Description Diameter (mm)
3470PVR200P63 Swivel castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, plate fitting. Wheel centre made of Polypropylene, Tread: solid rubber, black, roller bearing 200
3478PVR200P63 Fixed castor, Fork made of pressed steel, bright zinc plated, blue passivated, wheel axle with nut, plate fitting. Wheel centre made of Polypropylene, Tread: solid rubber, black, roller bearin 200

Alternative castors

  ART.NO. Description Diameter (mm)
Replacement castors 260 mm KM141-4 KM141-4 Replacement castors 260 mm 260
Replacement castors 260 mm KM141 KM141 Replacement castors 260 mm 260
Replacement castors 200 mm KM142-4 KM142-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM142 KM142 Replacement castors 200 mm 200
Replacement castors 200 mm KM144 KM144 Replacement castors 200 mm 200
Replacement castors 200 mm KM143-4 KM143-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM5000 KM5000 Replacement castors 200 mm 200
Replacement castors 200 mm KM144-4 KM144-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM6000-4 KM6000-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM5000-4 KM5000-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM6000 KM6000 Replacement castors 200 mm 200

Accessories

  ART.NO. Description Weight (kg)
Sign, A4 & A5 KMID-FA4L-01 KMID-FA4L-01 Sign, A4 & A5 0.92
Handle, EUR/FIN pallet KM217-D KM217-D Handle, EUR/FIN pallet 3.11
Sign, A4 & A5 KMID-FA5L-01 KMID-FA5L-01 Sign, A4 & A5 0.51
Sign, A4 & A5 KMID-FA4S-01 KMID-FA4S-01 Sign, A4 & A5 0.88
