KM154 | Bin trolley
  • Delivered in flat pack unassembled
  • 5 years warranty on all of our Trolleys
  • Braked castors
  • Swivel Castor

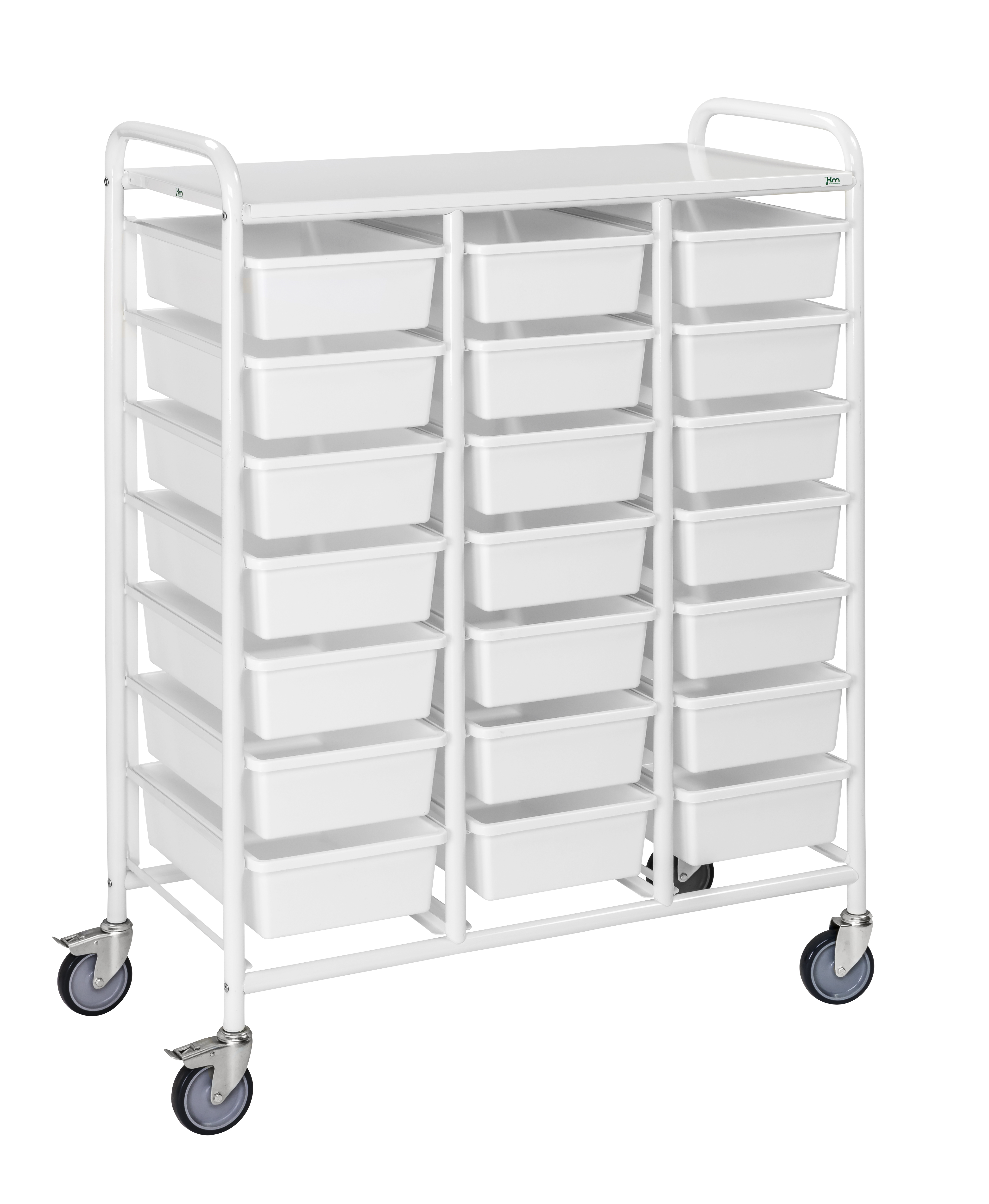

KM154 | Bin trolley

Tray trolley with great storage possiblities. Trays and bins are sold seperately as accessories.

Powder coated
Delivery without boxes
4 swivel 2 with with brakes 100 mm
Belastning 150kg

In stock

80 pcs.

FIND YOUR DEALER
  • Hospitals
  • School & Kindergarten
  • Logistic & Warehouse
  • Kitchen & Restaurant
  • Industry & Workshops

Variations

  ART.NO. Colour L x W X H (mm) Type of castors Braked castors Load (kg) Weight (kg) In stock
Bin trolley KM154 KM154 White 950 x 420 x 1205 4 swivel 2 with brake Yes 150 30.5 80
Bin trolley KM162 KM162 Electro galvanised 460 x 590 x 1880 4 swivel No 150 25.5 231
Bin trolley KM162B KM162B Electro galvanised 460 x 590 x 1880 4 swivel 2 with brake Yes 150 25.5 232
Bin trolley KM164 KM164 Electro galvanised 460 x 590 x 1880 4 swivel No 150 22 119
Bin trolley KM164B KM164B Electro galvanised 460 x 590 x 1880 4 swivel 2 with brake Yes 150 22 119
Bin trolley KM165DK KM165DK Electro galvanised 435 x 585 x 1880 4 swivel No 150 26 22
Bin trolley KM165DKB KM165DKB Electro galvanised 435 x 585 x 1880 4 swivel 2 with brake Yes 150 26 19
Bin trolley KM165S KM165S Electro galvanised 410 x 585 x 1880 4 swivel No 150 26 112
Bin trolley KM165SB KM165SB Electro galvanised 410 x 585 x 1880 4 swivel 2 with brake Yes 150 26 115
Bin trolley KM166 KM166 Electro galvanised 660 x 410 x 1850 4 swivel No 150 17.5 35
Bin trolley KM166B KM166B Electro galvanised 660 x 410 x 1850 4 swivel 2 with brake Yes 150 17.5 35
Bin trolley KM167 KM167 Electro galvanised 470 x 585 x 1880 4 swivel No 150 20 112
Bin trolley KM167-3E KM167-3E Blue 800 x 415 x 1100 2 fixed 2 swivel with brake Yes 150 22 16
Bin trolley KM167B KM167B Electro galvanised 470 x 585 x 1880 4 swivel 2 with brake Yes 150 20 120
Bin trolley KM40RS KM40RS Blue 975 x 435 x 1110 4 swivel 2 with brake Yes 100 17.8 79

Product information

  • Carton Dimensions - 1240x465x210mm
  • Length - 950 mm
  • Width - 420 mm
  • Height - 1205 mm
  • Static load - 150 kg
  • Freight volume - 0.08 m3
  • Gross weight - 30.5 kg
  • Net weight - 30.5 kg
  • Number of shelves - 21
  • Shelf capacity - 7 kg
  • Distance between shelves - 123 mm
  • Type of castors - 4 swivel 2 with brake
  • Castors diameter (mm) - 100

Documents

Castors

ART.NO. Description Diameter (mm)
1470PAO100P30-11

Wheel diameter 100mm
Width of Tread 25mm
Centre hole 11mm
Overall height 125mm

 100
1477PAO100P30-11

Wheel diameter 100mm
Width of Tread 25mm
Centre hole 11mm
Overall height 125mm

 100

Alternative castors

  ART.NO. Description Diameter (mm)
Replacement castors 100 mm KM1000-6 KM1000-6 Replacement castors 100 mm 100

Accessories

  ART.NO. Description Weight (kg)
Box KM154-G1 KM154-G1 Box 0.59
