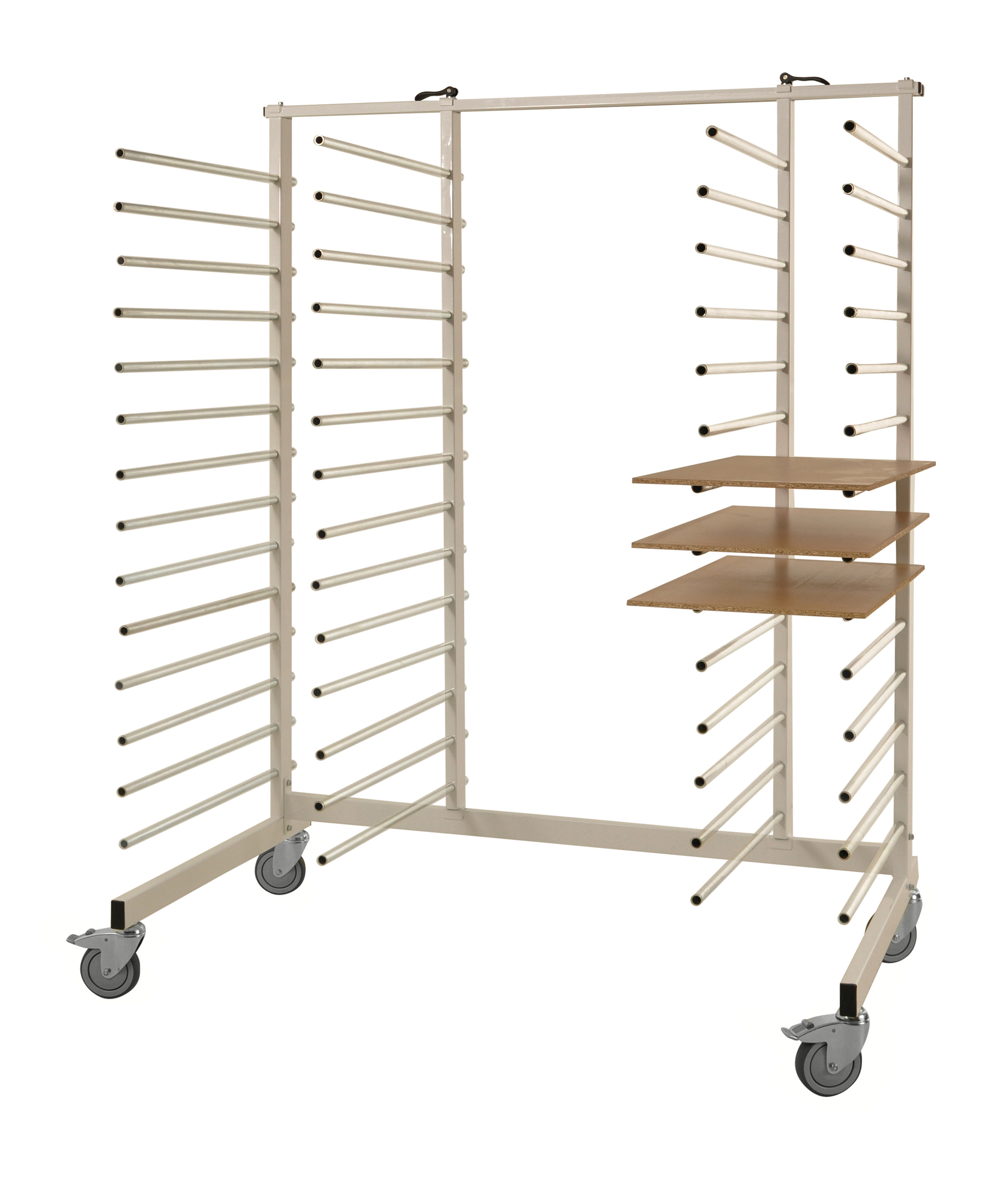

KM152979 | Drying trolley

Drying trolley fitted for the industry.

Powder coated with electro galvanised sticks, covered with plastic
The two sections in the middle is adjustable sideways
Height to top stick 1770 mm
Total length of sticks 740 mm, load length 650 mm
4 swivel castors, 2 with brakes, 125 mm
Capacity / level about 20 kg
Capacity: 300 kg

Add to productsheet

In stock

254 pcs.

FIND YOUR DEALER

Variations

	ART.NO.	Colour	L x W X H (mm)	Type of castors	Braked castors	Load (kg)	Weight (kg)	In stock
	KM152979	White	1520 x 860 x 1960	4 swivel 2 with brake	Yes	300	75	254

Product information

Carton Dimensions - 1740x250x100mm
Length - 1520 mm
Width - 860 mm
Height - 1960 mm
Static load - 300 kg
Freight volume - 0.3 m3
Gross weight - 75 kg
Net weight - 74 kg
Shelf capacity - 20 kg
Height to top shelf - 1770 mm
Type of castors - 4 swivel 2 with brake
Castors diameter (mm) - 125

Documents

Assembly instructions

Castors

ART.NO.	Description	Diameter (mm)
2470PJP125P30-11	Wheel diameter 125mm Width of Tread 32mm Centre hole 11mm Overall height 160mm	125
2477PJP125P30-11	Wheel diameter 125mm Width of Tread 32mm Centre hole 11mm Overall height 160mm	125
