KM439 | Board truck
  • Delivered in flat pack unassembled
  • 5 years warranty on all of our Trolleys

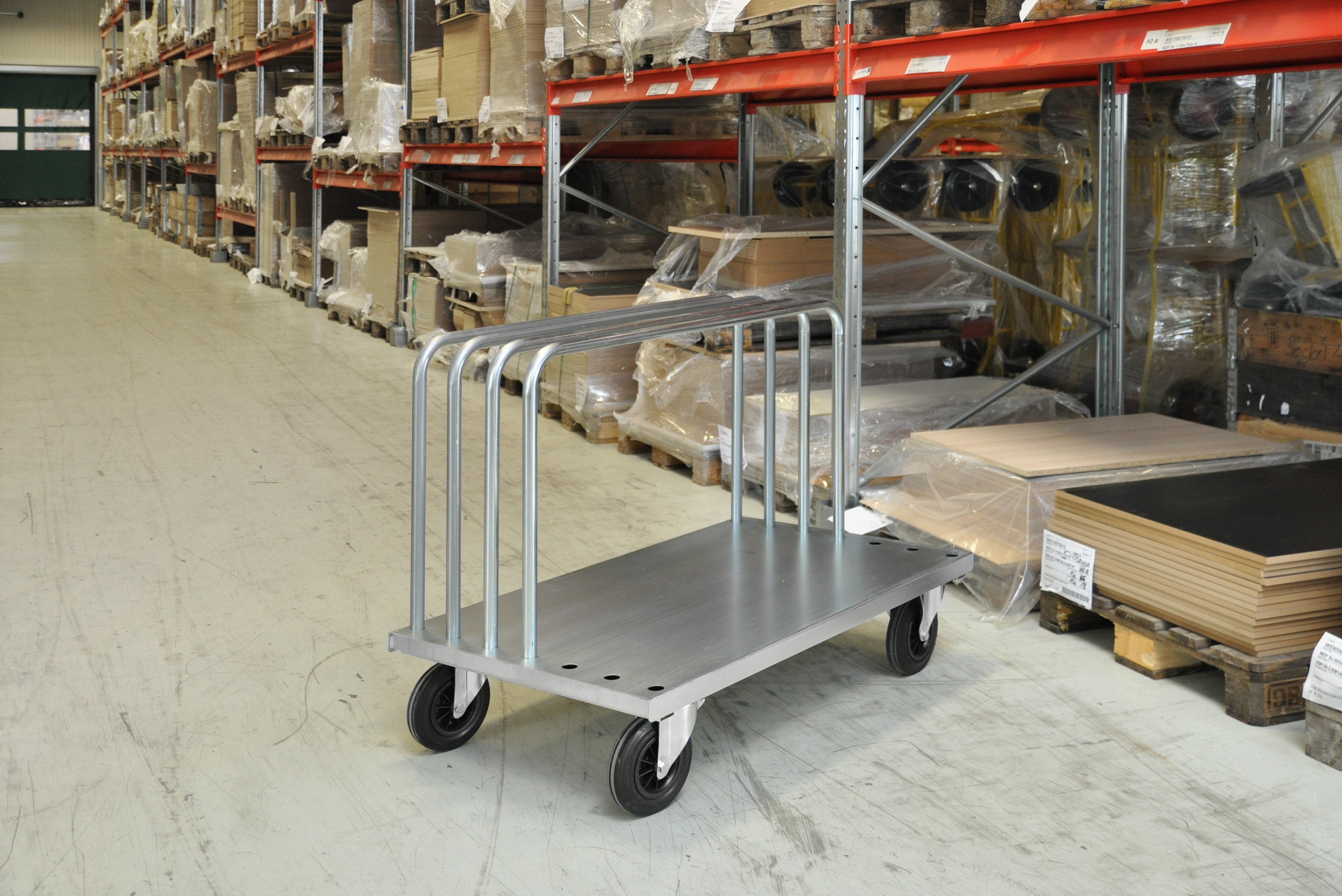

KM439 | Board truck

Board truck for transportation for the heavy loads. Available with or without brake.

Electro galvanised sheet metal
Space for 7 load bars
Comes with 2 load bars
Heigt to platform 265 mm
Distance between load bars 77 mm
Rubber 200 x 50 mm
Capacity: 500 kg

In stock

54 pcs.

FIND YOUR DEALER
  • Construction
  • Logistic & Warehouse
  • Industry & Workshops

Variations

  ART.NO. Colour L x W X H (mm) Type of castors Braked castors Load (kg) Weight (kg) In stock
Board truck KM439 KM439 Electro galvanised 1250 x 700 x 945 2 fixed 2 swivel No 500 44 54
Board truck KM439B KM439B Electro galvanised 1250 x 700 x 945 2 fixed 2 swivel with brake Yes 500 44.5 51

Product information

  • Carton Dimensions - 1270x710x275mm
  • Length - 1250 mm
  • Width - 700 mm
  • Height - 945 mm
  • Static load - 500 kg
  • Freight volume - 0.1 m3
  • Gross weight - 44 kg
  • Net weight - 42.5 kg
  • Number of shelves - 1
  • Distance between load bars - 77 mm
  • Height to first shelf - 265 mm
  • Type of castors - 2 fixed 2 swivel
  • Castors diameter (mm) - 200

Documents

Castors

ART.NO. Description Diameter (mm)
3470PVR200P63 Swivel castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, plate fitting. Wheel centre made of Polypropylene, Tread: solid rubber, black, roller bearing 200
3478PVR200P63 Fixed castor, Fork made of pressed steel, bright zinc plated, blue passivated, wheel axle with nut, plate fitting. Wheel centre made of Polypropylene, Tread: solid rubber, black, roller bearin 200

Alternative castors

  ART.NO. Description Diameter (mm)
Replacement castors 260 mm KM141-4 KM141-4 Replacement castors 260 mm 260
Replacement castors 260 mm KM141 KM141 Replacement castors 260 mm 260
Replacement castors 200 mm KM142-4 KM142-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM142 KM142 Replacement castors 200 mm 200
Replacement castors 200 mm KM144 KM144 Replacement castors 200 mm 200
Replacement castors 200 mm KM143-4 KM143-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM5000 KM5000 Replacement castors 200 mm 200
Replacement castors 200 mm KM144-4 KM144-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM6000-4 KM6000-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM5000-4 KM5000-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM6000 KM6000 Replacement castors 200 mm 200

Accessories

  ART.NO. Description Weight (kg)
Wall KM439-S KM439-S Wall 1.5
Box KM439-L KM439-L Box 14
Sign, A4 & A5 KMID-F439A4L KMID-F439A4L Sign, A4 & A5 0.93
Bracket KM139-33 KM139-33 Bracket 3
Sign, A4 & A5 KMID-F439A5L KMID-F439A5L Sign, A4 & A5 0.52
