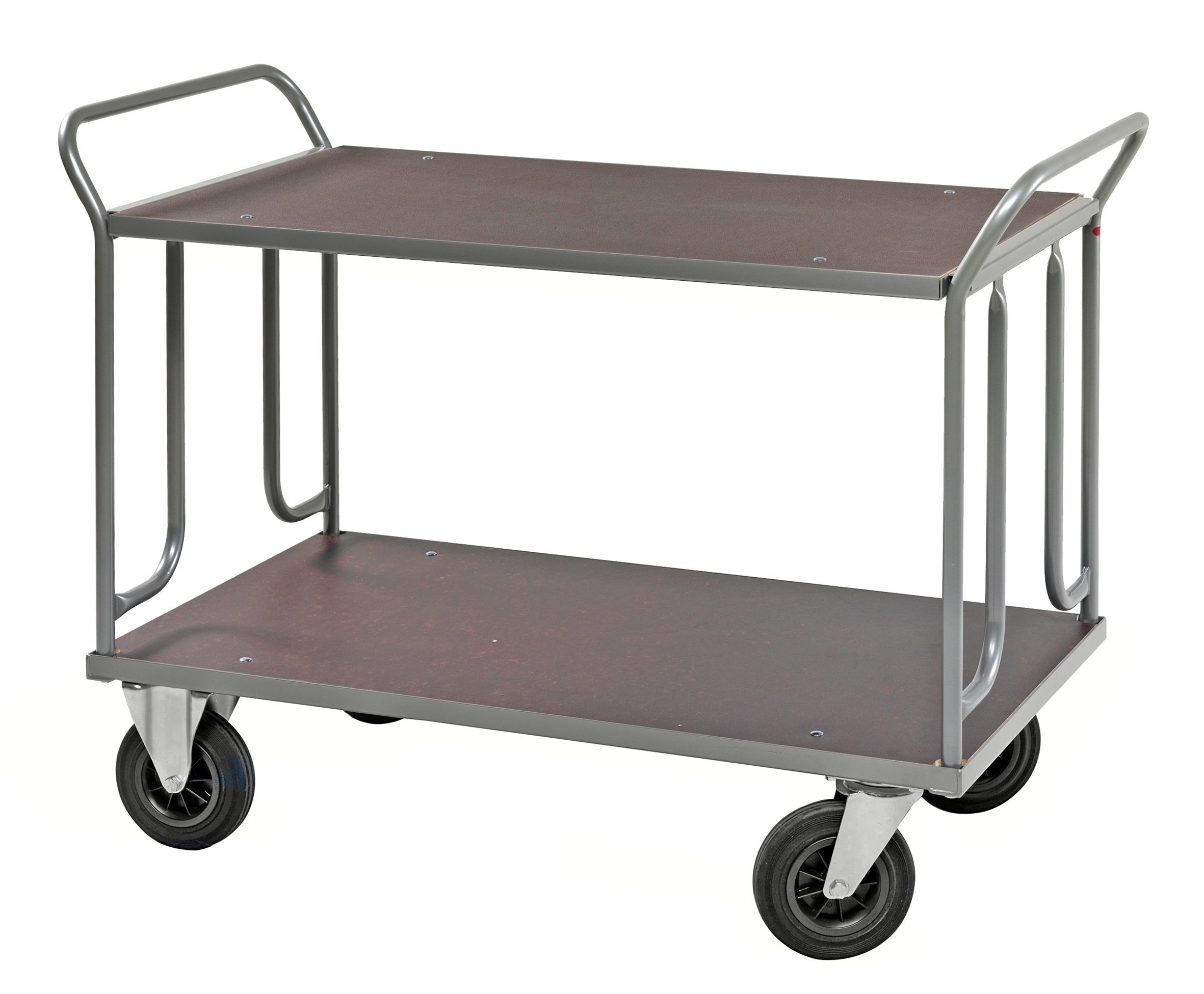

KM7731-4 | Platform trolley
  • Delivered in flat pack unassembled
  • 5 years warranty on all of our Trolleys

KM7731-4 | Platform trolley

Powder coated panel platform truck with a large applications area. It is possible to add accessories as an extra end panel and shelf so it would fit your requirements perfectly. Available in different sizes and with or without brake.

Powder coated with laminate shelf
Height to platform 260 mm
Handles 25 mm steel pipe, will be delivered with 1 handle
2 fixed 2 swivel castors solid rubber 200 x 50 mm
Capacity: 500 kg

In stock

26 pcs.

FIND YOUR DEALER
  • Construction
  • Logistic & Warehouse
  • Industry & Workshops

Variations

  ART.NO. Colour L x W X H (mm) Type of castors Braked castors Load (kg) Weight (kg) In stock
Platform trolley KM7731-4 KM7731-4 Grey / MDF, black 1074 x 600 x 1000 2 fixed 2 swivel No 500 26.5 26
Platform trolley KM7731-4B KM7731-4B Grey / MDF, black 1074 x 600 x 1000 2 fixed 2 swivel with brake Yes 500 27 26
Platform trolley KM7731-5 KM7731-5 Grey / MDF, black 1274 x 700 x 1000 2 fixed 2 swivel No 500 31 32
Platform trolley KM7731-5B KM7731-5B Grey / MDF, black 1274 x 700 x 1000 2 fixed 2 swivel with brake Yes 500 31.5 32

Product information

  • Length - 1074 mm
  • Width - 600 mm
  • Height - 1000 mm
  • Static load - 500 kg
  • Freight volume - 0.05 m3
  • Gross weight - 26.5 kg
  • Net weight - 25 kg
  • Type of castors - 2 fixed 2 swivel
  • Castors diameter (mm) - 200

Documents

Castors

ART.NO. Description Diameter (mm)
3470PVR200P63 Swivel castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, plate fitting. Wheel centre made of Polypropylene, Tread: solid rubber, black, roller bearing 200
3478PVR200P63 Fixed castor, Fork made of pressed steel, bright zinc plated, blue passivated, wheel axle with nut, plate fitting. Wheel centre made of Polypropylene, Tread: solid rubber, black, roller bearin 200

Alternative castors

  ART.NO. Description Diameter (mm)
Replacement castors 260 mm KM141-4 KM141-4 Replacement castors 260 mm 260
Replacement castors 260 mm KM141 KM141 Replacement castors 260 mm 260
Replacement castors 200 mm KM142-4 KM142-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM142 KM142 Replacement castors 200 mm 200
Replacement castors 200 mm KM144 KM144 Replacement castors 200 mm 200
Replacement castors 200 mm KM143-4 KM143-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM5000 KM5000 Replacement castors 200 mm 200
Replacement castors 200 mm KM144-4 KM144-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM6000-4 KM6000-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM5000-4 KM5000-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM6000 KM6000 Replacement castors 200 mm 200

Accessories

  ART.NO. Description Weight (kg)
Serie 700 Tabletop KM7731-64 KM7731-64 Serie 700 Tabletop 16
Serie 700 Bracket KM7731-44 KM7731-44 Serie 700 Bracket 3.5
Tablet holder KM145-TH KM145-TH Tablet holder 1.3
Writing tablet KM145-L KM145-L Writing tablet 1.2
