KM635-2H | Box truck
  • Delivered in flat pack unassembled
  • 5 years warranty on all of our Trolleys

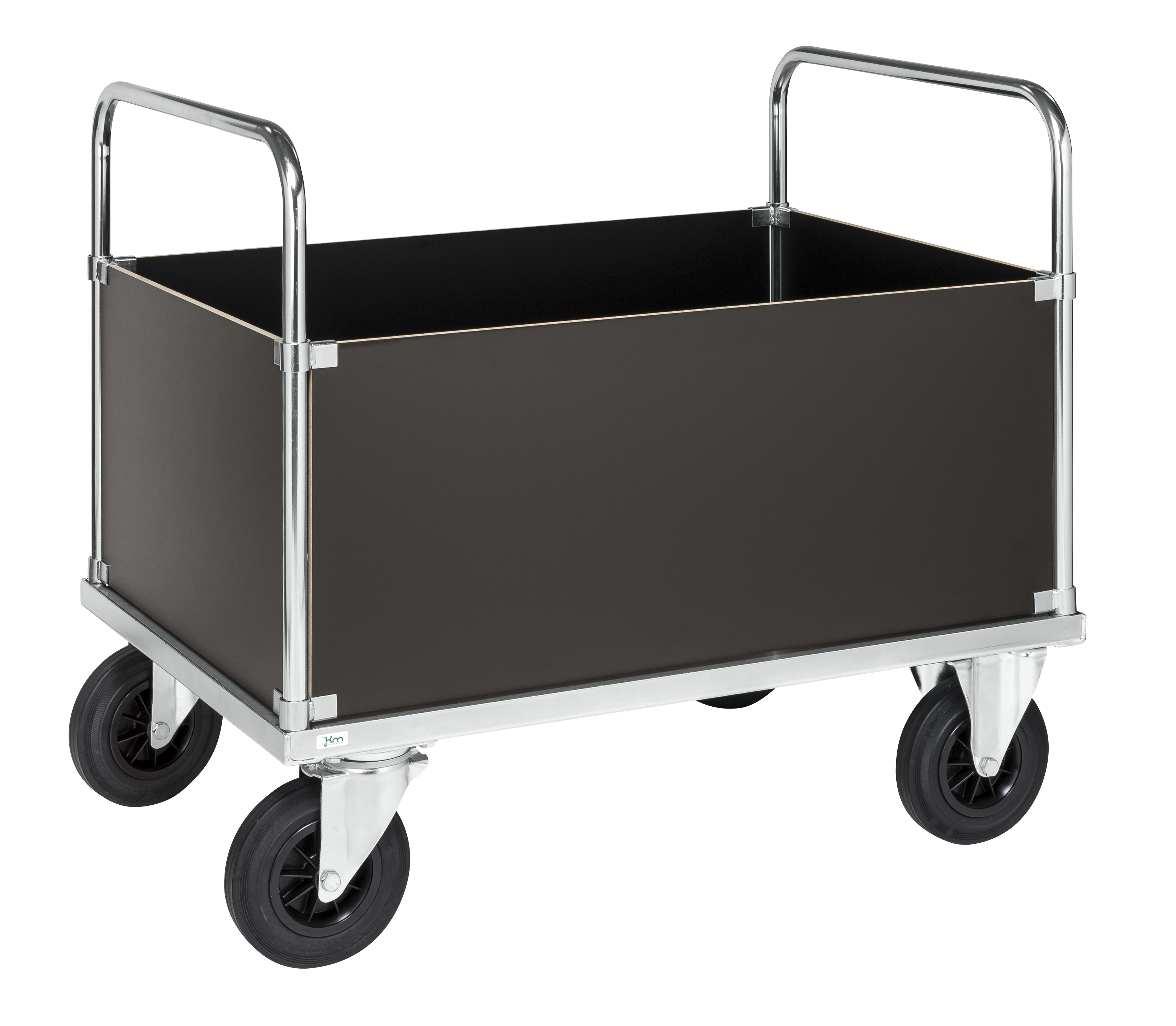

KM635-2H | Box truck

Smart box truck. Available with low or high edge and with or without brake.  Serie 600 also offers table trolley, box trolley, end panel trolley and other variants of the platform trolley.



Electro galvanised
Height to platform 260 mm
Bottom with 2 mm galvanised steel
End panels in laminate, height 200 mm
Handles 25 mm steel pipe
2 fixed 2 swivel castors solid rubber 200 x 50 mm
Capacity: 500 kg

In stock

20 pcs.

FIND YOUR DEALER
  • Construction
  • Logistic & Warehouse
  • Industry & Workshops

Variations

  ART.NO. Colour L x W X H (mm) Type of castors Braked castors Load (kg) Weight (kg) In stock
Box truck KM635-2H KM635-2H Electro galvanised 1000 x 700 x 900 2 fixed 2 swivel No 500 48 20
Box truck KM635-2HB KM635-2HB Electro galvanised 1000 x 700 x 900 2 fixed 2 swivel with brake Yes 500 48.5 20
Box truck KM635-2L KM635-2L Electro galvanised 1000 x 700 x 900 2 fixed 2 swivel No 500 42 24
Box truck KM635-2LB KM635-2LB Electro galvanised 1000 x 700 x 900 2 fixed 2 swivel with brake Yes 500 42.5 24
Box truck KM635-3H KM635-3H Electro galvanised 1200 x 800 x 900 2 fixed 2 swivel No 500 57.5 12
Box truck KM635-3HB KM635-3HB Electro galvanised 1200 x 800 x 900 2 fixed 2 swivel with brake Yes 500 58 14
Box truck KM635-3L KM635-3L Electro galvanised 1200 x 800 x 900 2 fixed 2 swivel No 500 50.5 15
Box truck KM635-3LB KM635-3LB Electro galvanised 1200 x 800 x 900 2 fixed 2 swivel with brake Yes 500 51 16

Product information

  • Carton Dimensions - 1000x700x60
  • Length - 1000 mm
  • Width - 700 mm
  • Height - 900 mm
  • Static load - 500 kg
  • Freight volume - 0.06 m3
  • Gross weight - 48 kg
  • Net weight - 46.5 kg
  • Shelf dimensions (length) - 930 mm
  • Shelf dimensions (width) - 630 mm
  • Heigth to handle - 900 mm
  • Type of castors - 2 fixed 2 swivel
  • Castors diameter (mm) - 200

Documents

Castors

ART.NO. Description Diameter (mm)
3470PVR200P63 Swivel castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, plate fitting. Wheel centre made of Polypropylene, Tread: solid rubber, black, roller bearing 200
3478PVR200P63 Fixed castor, Fork made of pressed steel, bright zinc plated, blue passivated, wheel axle with nut, plate fitting. Wheel centre made of Polypropylene, Tread: solid rubber, black, roller bearin 200

Alternative castors

  ART.NO. Description Diameter (mm)
Replacement castors 260 mm KM141-4 KM141-4 Replacement castors 260 mm 260
Replacement castors 260 mm KM141 KM141 Replacement castors 260 mm 260
Replacement castors 200 mm KM142-4 KM142-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM142 KM142 Replacement castors 200 mm 200
Replacement castors 200 mm KM144 KM144 Replacement castors 200 mm 200
Replacement castors 200 mm KM143-4 KM143-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM5000 KM5000 Replacement castors 200 mm 200
Replacement castors 200 mm KM144-4 KM144-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM6000-4 KM6000-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM5000-4 KM5000-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM6000 KM6000 Replacement castors 200 mm 200

Accessories

  ART.NO. Description Weight (kg)
Writing tablet KM145-L KM145-L Writing tablet 1.2
Tablet holder KM145-TH KM145-TH Tablet holder 1.3
