• Delivered in flat pack unassembled
  • 5 years warranty on all of our Trolleys

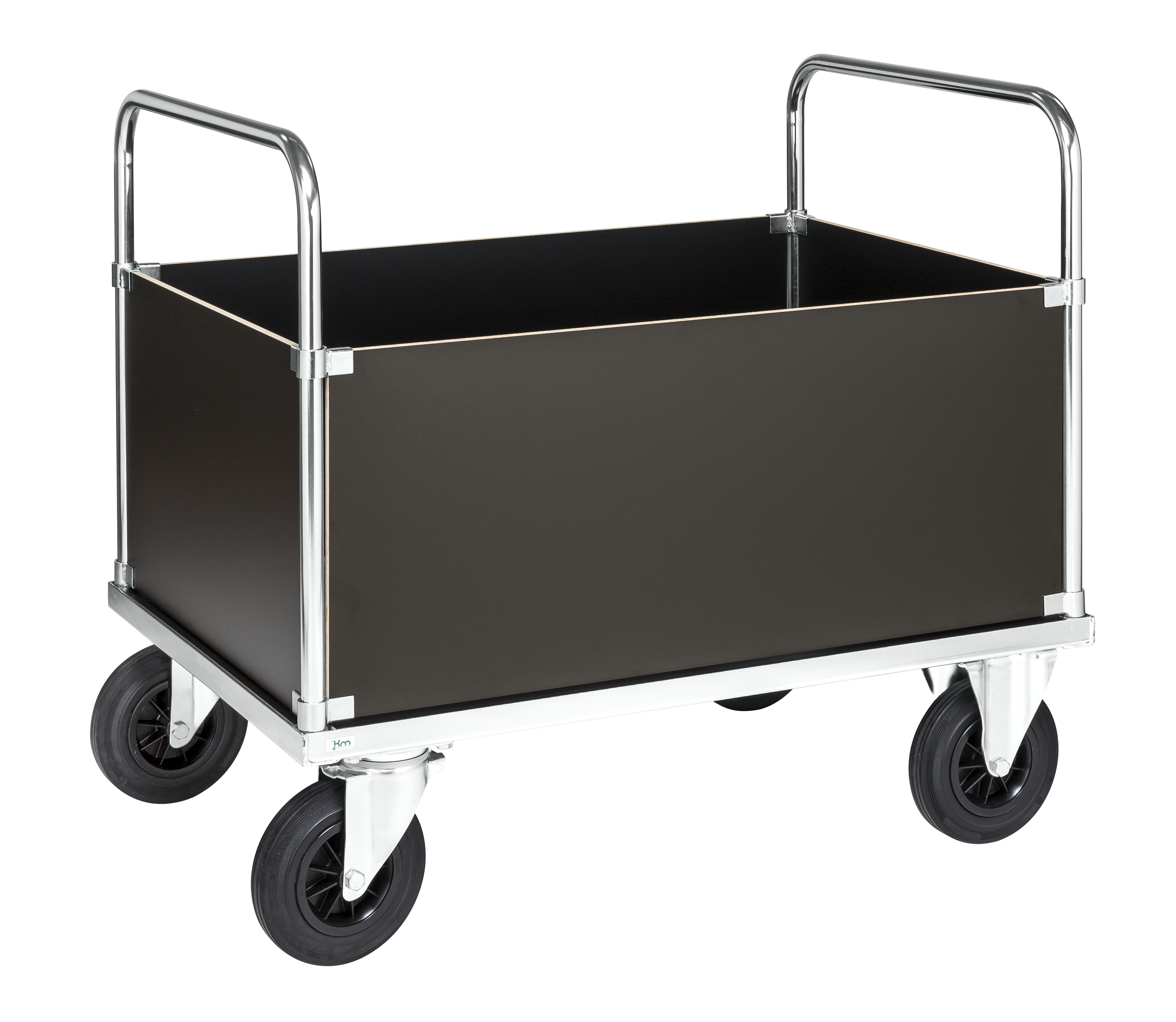

KM535-2H | Box truck

Smart box truck available in several models. Available with low or high Edge and with or without brake.  Serie 500 also offers table trolley, shelf trolley, box trolley, end panel trolley and other variants of the platform trolley.

Electro galvanised with laminate shelves
Height to platform 260 mm
End panels in laminate, height 400 mm
Handles 25 mm steel pipe
2 fixed 2 swivel castors solid rubber 200 x 50 mm
Capacity: 500 kg

In stock

188 pcs.

FIND YOUR DEALER
  • Construction
  • Logistic & Warehouse
  • Industry & Workshops

Variations

  ART.NO. Colour L x W X H (mm) Type of castors Braked castors Load (kg) Weight (kg) In stock
Box truck KM535-2H KM535-2H Electro galvanised / MDF, black 1000 x 700 x 900 2 fixed 2 swivel No 500 38 188
Box truck KM535-2HB KM535-2HB Electro galvanised / MDF, black 1000 x 700 x 900 2 fixed 2 swivel with brake Yes 500 38.5 188
Box truck KM535-2L KM535-2L Electro galvanised / MDF, black 1000 x 700 x 900 2 fixed 2 swivel No 500 33 83
Box truck KM535-2LB KM535-2LB Electro galvanised / MDF, black 1000 x 700 x 900 2 fixed 2 swivel with brake Yes 500 33.5 83
Box truck KM535-3H KM535-3H Electro galvanised / MDF, black 1200 x 800 x 900 2 fixed 2 swivel No 500 44 101
Box truck KM535-3HB KM535-3HB Electro galvanised / MDF, black 1200 x 800 x 900 2 fixed 2 swivel with brake Yes 500 44.5 101
Box truck KM535-3L KM535-3L Electro galvanised / MDF, black 1200 x 800 x 900 2 fixed 2 swivel No 500 37 82
Box truck KM535-3LB KM535-3LB Electro galvanised / MDF, black 1200 x 800 x 900 2 fixed 2 swivel with brake Yes 500 37.5 82

Product information

  • Length - 1000 mm
  • Width - 700 mm
  • Height - 900 mm
  • Static load - 500 kg
  • Freight volume - 0.06 m3
  • Gross weight - 38 kg
  • Net weight - 36.5 kg
  • Type of castors - 2 fixed 2 swivel
  • Castors diameter (mm) - 200

Documents

Alternative castors

  ART.NO. Description Diameter (mm)
Replacement castors 260 mm KM141-4 KM141-4 Replacement castors 260 mm 260
Replacement castors 260 mm KM141 KM141 Replacement castors 260 mm 260
Replacement castors 200 mm KM142-4 KM142-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM142 KM142 Replacement castors 200 mm 200
Replacement castors 200 mm KM144 KM144 Replacement castors 200 mm 200
Replacement castors 200 mm KM143-4 KM143-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM5000 KM5000 Replacement castors 200 mm 200
Replacement castors 200 mm KM144-4 KM144-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM6000-4 KM6000-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM5000-4 KM5000-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM6000 KM6000 Replacement castors 200 mm 200

Accessories

  ART.NO. Description Weight (kg)
Ergogrip KM07100 KM07100 Ergogrip 3
Writing tablet KM145-L KM145-L Writing tablet 1.2
Tablet holder KM145-TH KM145-TH Tablet holder 1.3
