KM332-2 | Platform truck
  • Delivered in flat pack unassembled
  • 5 years warranty on all of our Trolleys

KM332-2 | Platform truck

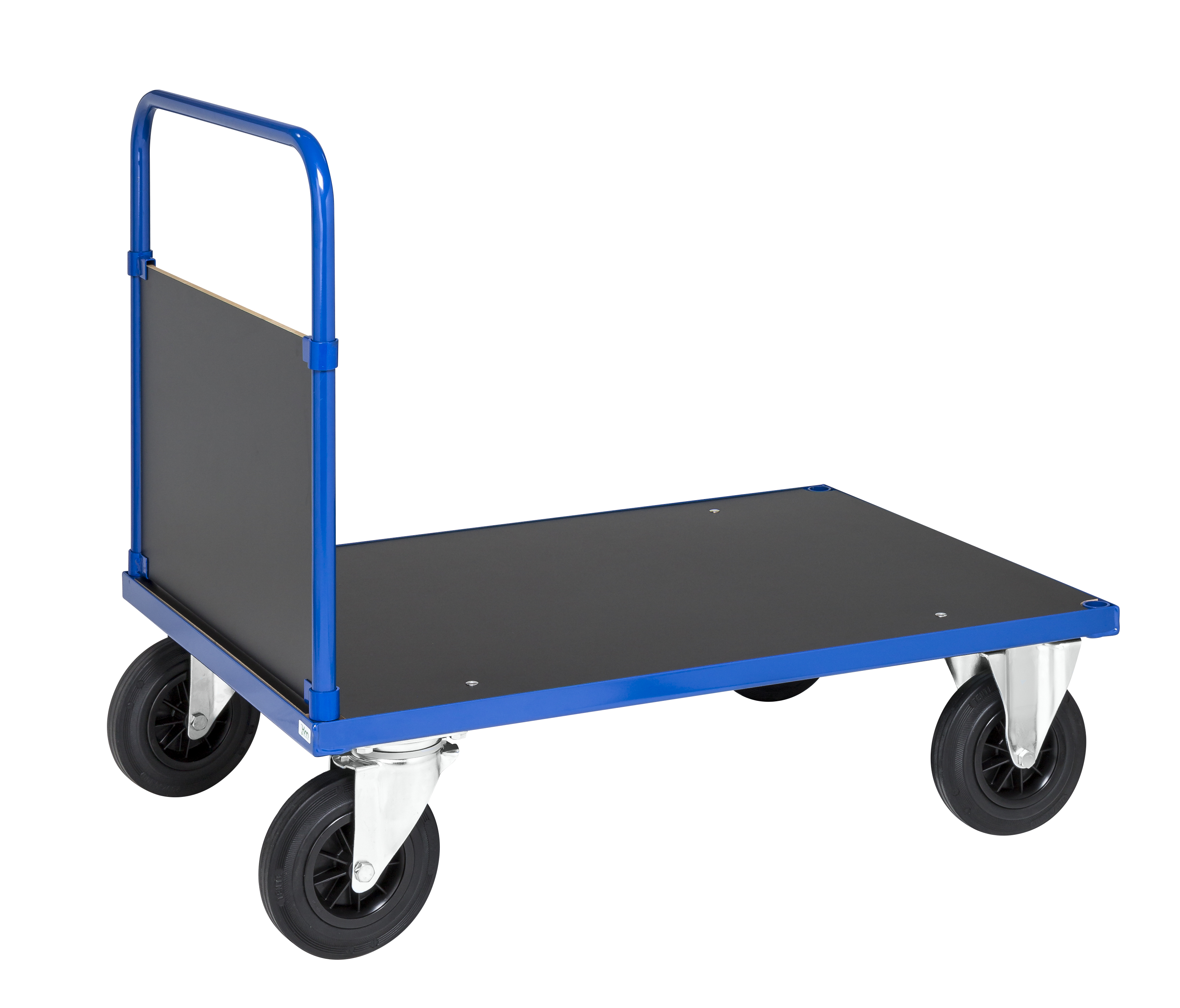

Robust but smart end panel platform truck with a handle. Available in several models with either one or two end panels. he serie 300 also offers table trolley, shelf trolley, box trolley, end panel trolley and other variants of the platform trolley.

Powder coated with laminate shelf
Height to platform 260 mm
End panel in laminate, height 400 mm
Handles 25 mm steel pipe
2 fixed 2 swivel castors solid rubber 200 x 50 mm
Capacity: 500 kg

In stock

211 pcs.

FIND YOUR DEALER
  • Construction
  • Logistic & Warehouse
  • Industry & Workshops

Variations

  ART.NO. Colour L x W X H (mm) Type of castors Braked castors Load (kg) Weight (kg) In stock
Platform truck KM332-2 KM332-2 Blue / MDF, black 1000 x 700 x 900 2 fixed 2 swivel No 500 28.5 211
Platform truck KM332-2B KM332-2B Blue / MDF, black 1000 x 700 x 900 2 fixed 2 swivel with brake Yes 500 29 211
Platform truck KM332-3 KM332-3 Blue / MDF, black 1200 x 800 x 900 2 fixed 2 swivel No 500 32.5 338
Platform truck KM332-3B KM332-3B Blue / MDF, black 1200 x 800 x 900 2 fixed 2 swivel with brake Yes 500 33 338

Product information

  • Carton Dimensions - 1020x730x285
  • Length - 1000 mm
  • Width - 700 mm
  • Height - 900 mm
  • Static load - 500 kg
  • Freight volume - 0.07 m3
  • Gross weight - 28.5 kg
  • Net weight - 27 kg
  • Number of shelves - 1
  • Type of castors - 2 fixed 2 swivel
  • Castors diameter (mm) - 200

Documents

Castors

ART.NO. Description Diameter (mm)
3470PVR200P63 Swivel castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, plate fitting. Wheel centre made of Polypropylene, Tread: solid rubber, black, roller bearing 200
3478PVR200P63 Fixed castor, Fork made of pressed steel, bright zinc plated, blue passivated, wheel axle with nut, plate fitting. Wheel centre made of Polypropylene, Tread: solid rubber, black, roller bearin 200

Alternative castors

  ART.NO. Description Diameter (mm)
Replacement castors 260 mm KM141-4 KM141-4 Replacement castors 260 mm 260
Replacement castors 260 mm KM141 KM141 Replacement castors 260 mm 260
Replacement castors 200 mm KM142-4 KM142-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM142 KM142 Replacement castors 200 mm 200
Replacement castors 200 mm KM144 KM144 Replacement castors 200 mm 200
Replacement castors 200 mm KM143-4 KM143-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM5000 KM5000 Replacement castors 200 mm 200
Replacement castors 200 mm KM144-4 KM144-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM6000-4 KM6000-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM5000-4 KM5000-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM6000 KM6000 Replacement castors 200 mm 200

Accessories

  ART.NO. Description Weight (kg)
Writing tablet KM145-L KM145-L Writing tablet 1.2
Tablet holder KM145-TH KM145-TH Tablet holder 1.3
