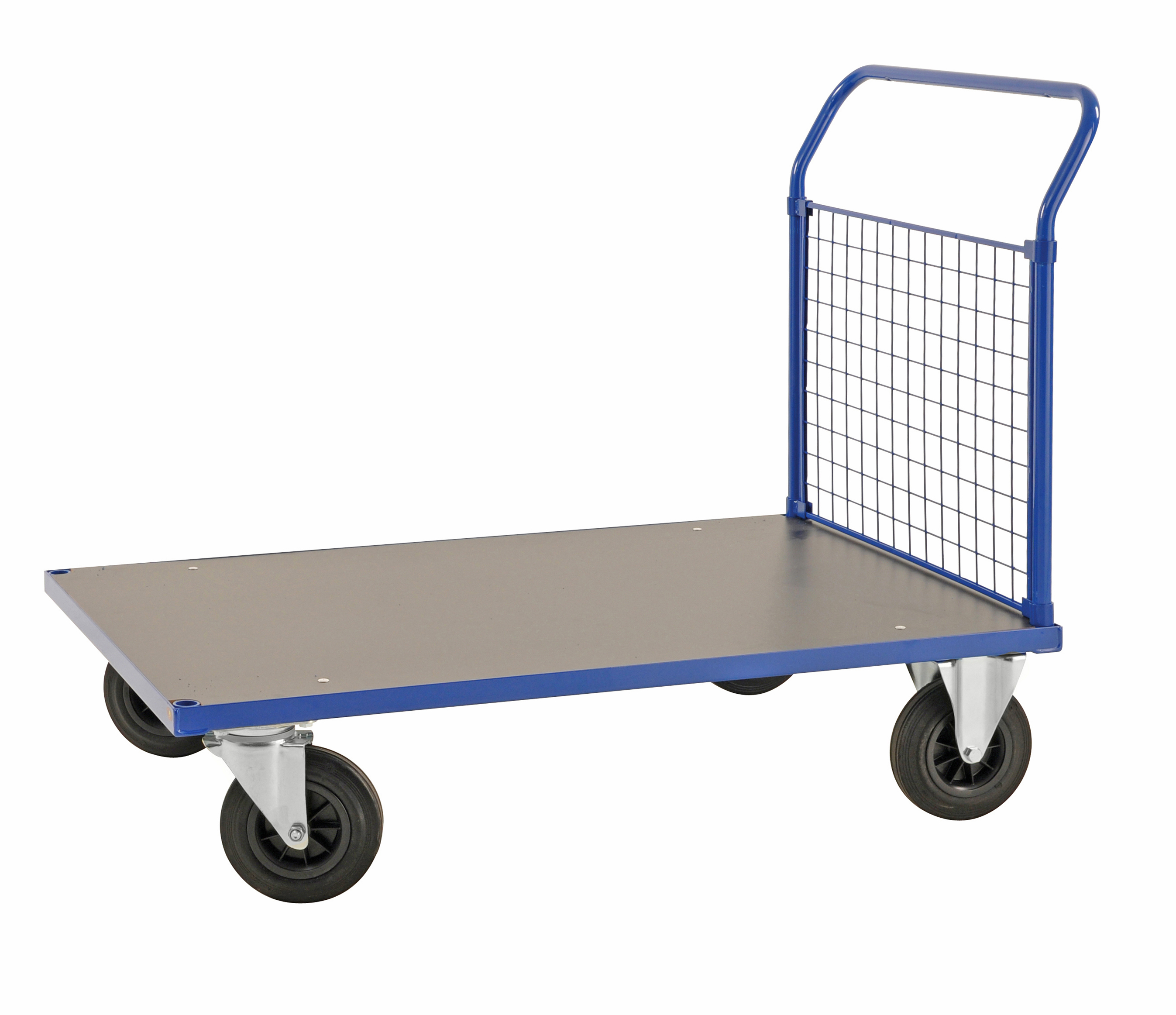

KM232-2 | Platform truck
  • Delivered in flat pack unassembled
  • 5 years warranty on all of our Trolleys

KM232-2 | Platform truck

A serie with mesh end panel platform trucks. The trucks are available with 1 and up to 4 end panels. Smart to use in various enviroments such as intern transportation in a industry to use as storage for footballs and basketballs in the gym.

Powder coated with laminate shelf
Height to platform 260 mm
Mesh side - height 520 mm
Handles 25 mm steel pipe
2 fixed 2 swivel castors solid rubber 200 x 50 mm
Capacity: 500 kg

In stock

168 pcs.

FIND YOUR DEALER
  • Construction
  • Logistic & Warehouse
  • Industry & Workshops

Variations

  ART.NO. Colour L x W X H (mm) Type of castors Braked castors Load (kg) Weight (kg) In stock
Platform truck KM232-2 KM232-2 Blue / MDF, black 1083 x 700 x 1020 2 fixed 2 swivel No 500 29.5 168
Platform truck KM232-2B KM232-2B Blue / MDF, black 1083 x 700 x 1020 2 fixed 2 swivel with brake Yes 500 30 168
Platform truck KM232-3 KM232-3 Blue / MDF, black 1283 x 800 x 1020 2 fixed 2 swivel No 500 34 193
Platform truck KM232-3B KM232-3B Blue / MDF, black 1283 x 800 x 1020 2 fixed 2 swivel with brake Yes 500 34.5 193

Product information

  • Carton Dimensions - 1020x730x100mm
  • Length - 1083 mm
  • Width - 700 mm
  • Height - 1020 mm
  • Static load - 500 kg
  • Freight volume - 0.08 m3
  • Gross weight - 29.5 kg
  • Net weight - 28 kg
  • Type of castors - 2 fixed 2 swivel
  • Castors diameter (mm) - 200

Documents

Castors

ART.NO. Description Diameter (mm)
3470PVR200P63 Swivel castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, plate fitting. Wheel centre made of Polypropylene, Tread: solid rubber, black, roller bearing 200
3478PVR200P63 Fixed castor, Fork made of pressed steel, bright zinc plated, blue passivated, wheel axle with nut, plate fitting. Wheel centre made of Polypropylene, Tread: solid rubber, black, roller bearin 200

Alternative castors

  ART.NO. Description Diameter (mm)
Replacement castors 260 mm KM141-4 KM141-4 Replacement castors 260 mm 260
Replacement castors 260 mm KM141 KM141 Replacement castors 260 mm 260
Replacement castors 200 mm KM142-4 KM142-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM142 KM142 Replacement castors 200 mm 200
Replacement castors 200 mm KM144 KM144 Replacement castors 200 mm 200
Replacement castors 200 mm KM143-4 KM143-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM5000 KM5000 Replacement castors 200 mm 200
Replacement castors 200 mm KM144-4 KM144-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM6000-4 KM6000-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM5000-4 KM5000-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM6000 KM6000 Replacement castors 200 mm 200

Accessories

  ART.NO. Description Weight (kg)
Writing tablet KM145-L KM145-L Writing tablet 1.2
Tablet holder KM145-TH KM145-TH Tablet holder 1.3
A4 signholder KMFACK-4 KMFACK-4 A4 signholder 0.6
