• 5 years warranty on all of our Trolleys
  • Braked castors

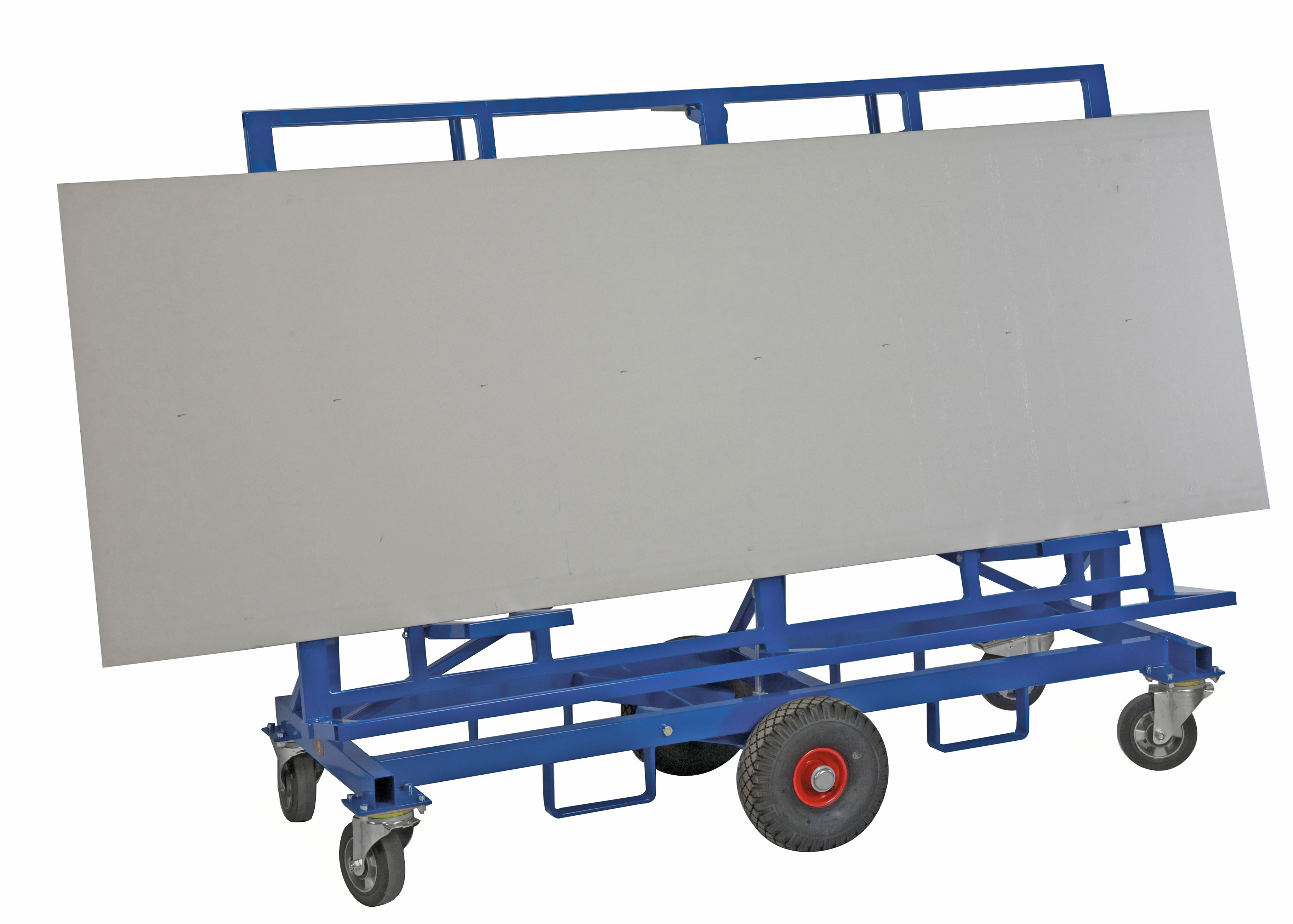

KM08200 | Board truck

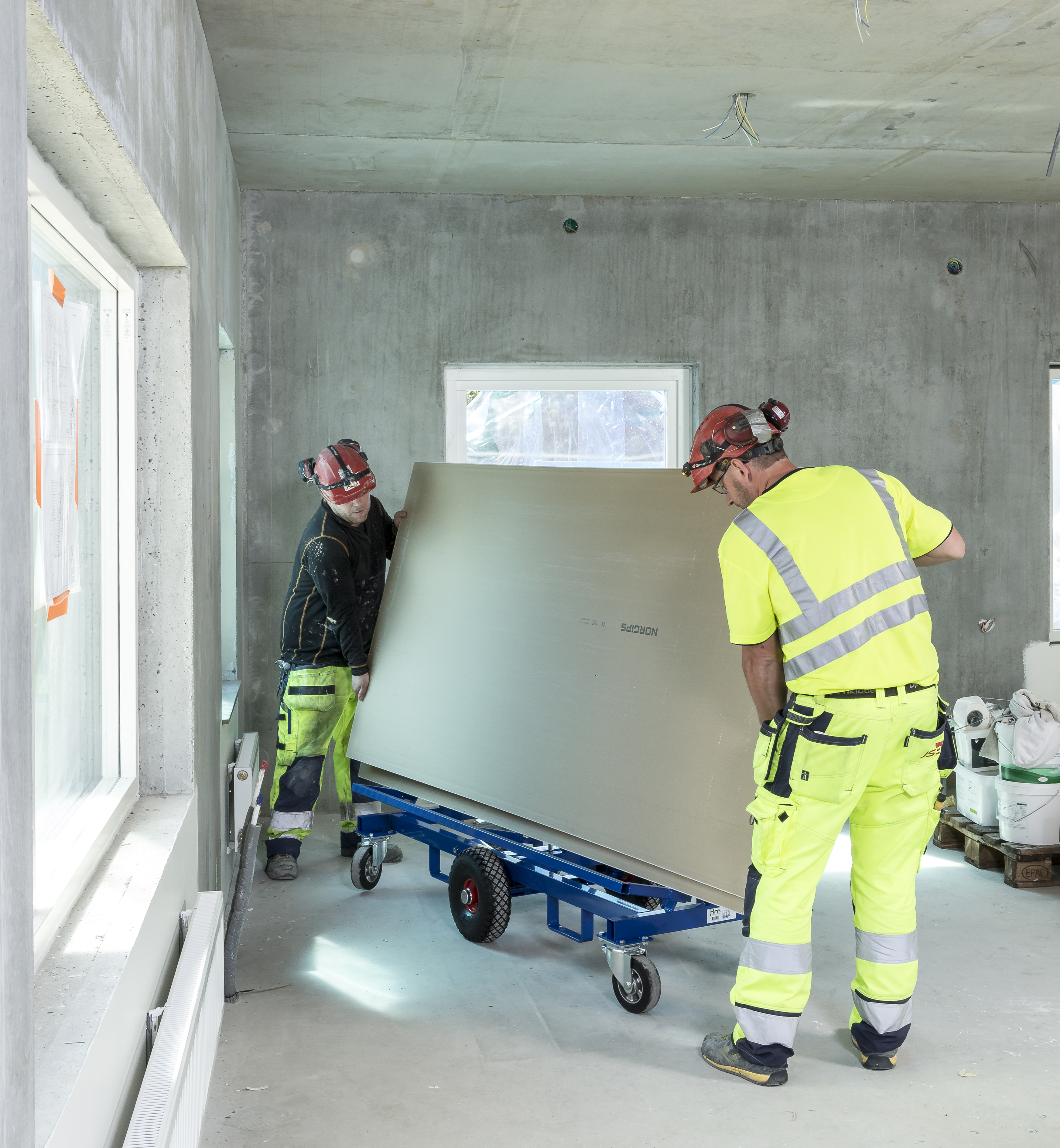

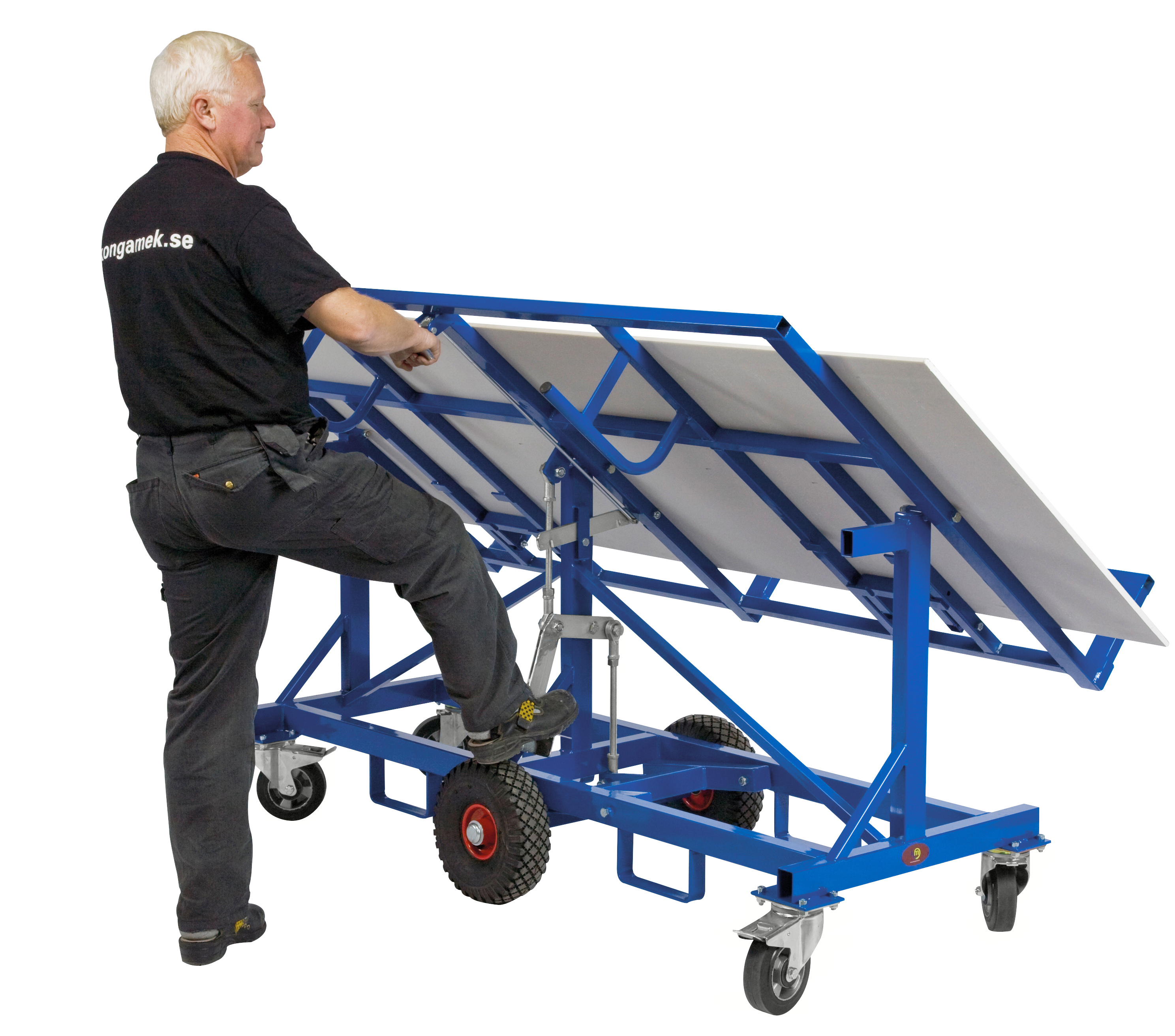

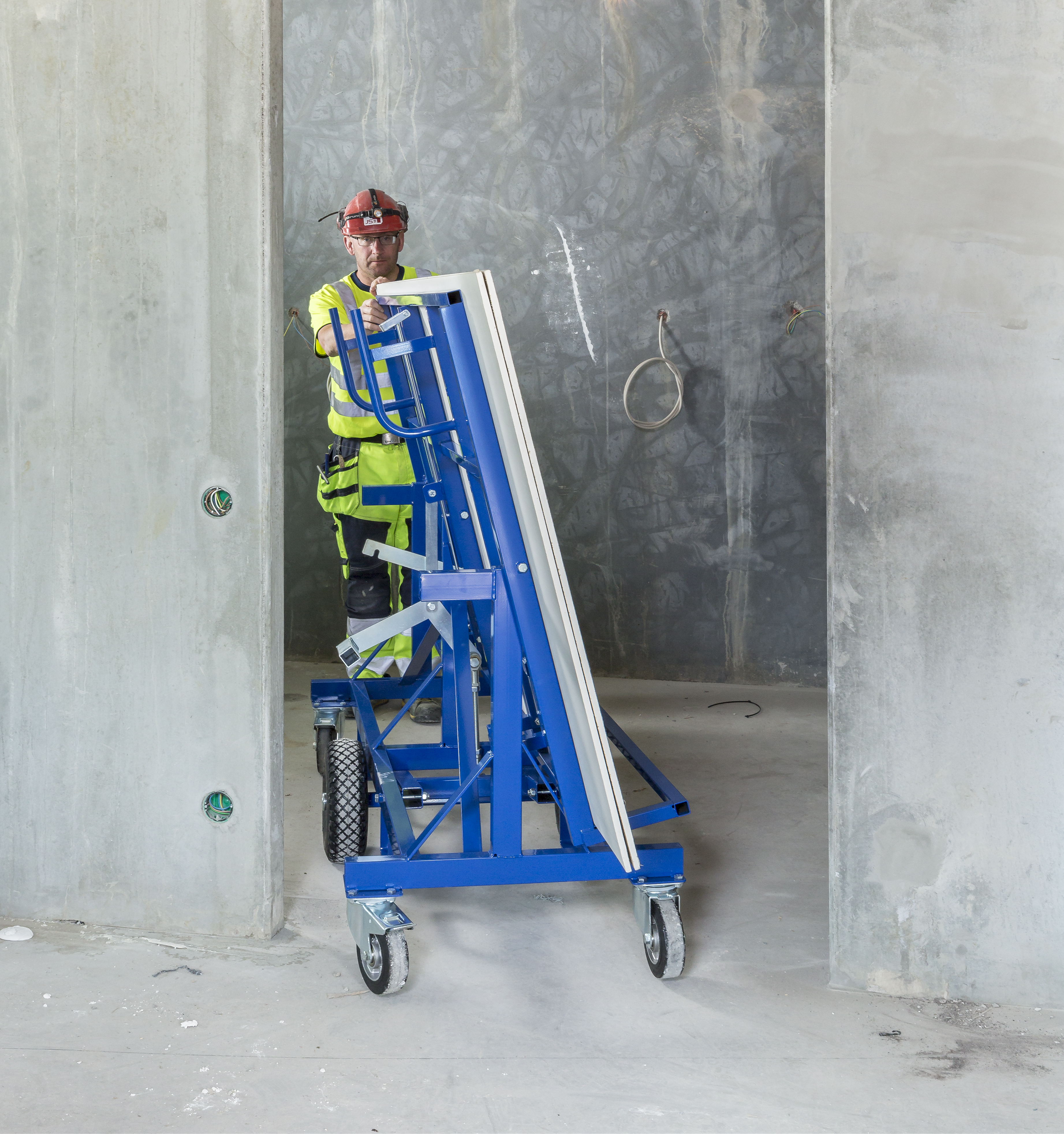

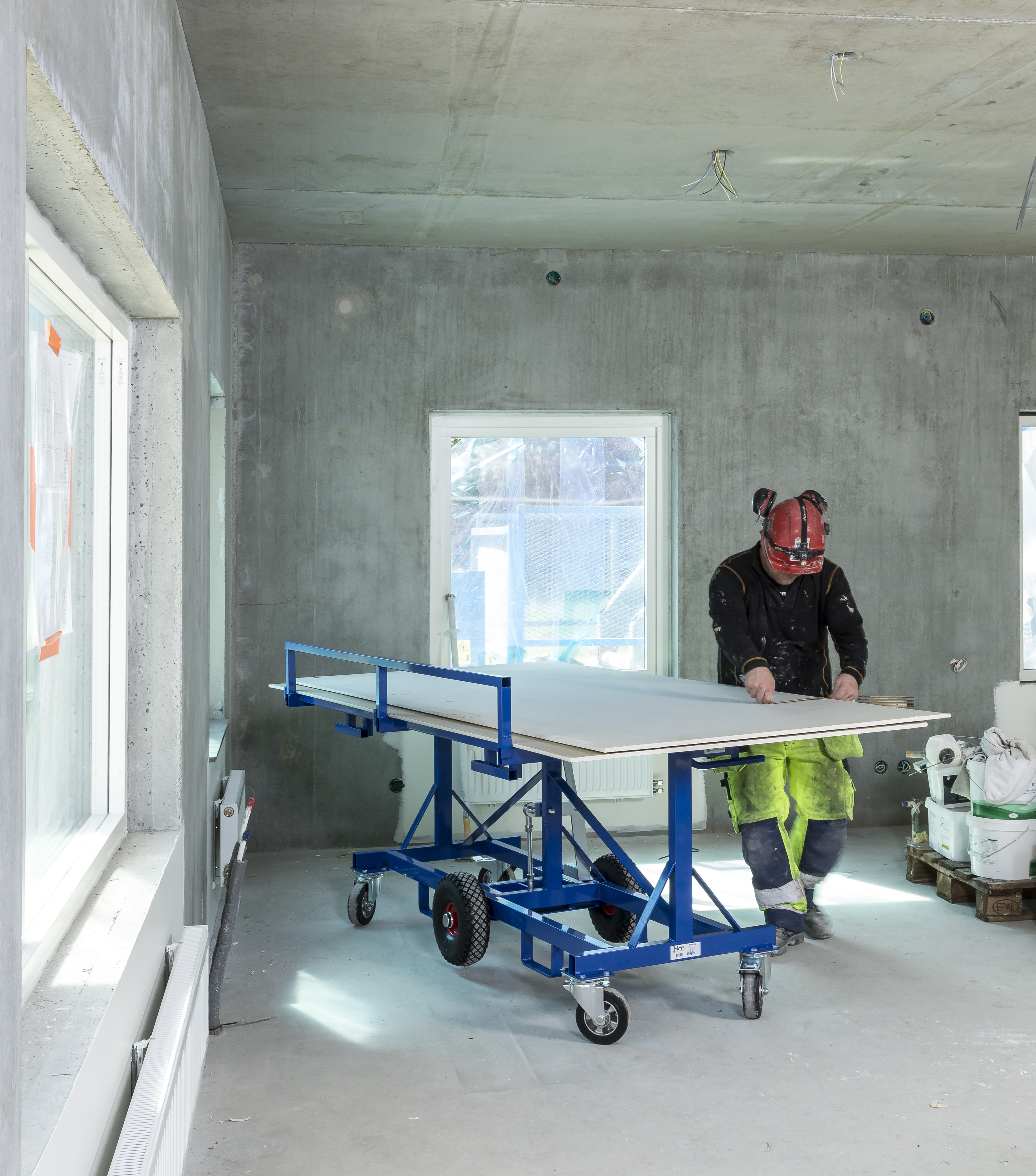

Board transporter to make it easier to handle when working with boards. The castors are heavy and will bear even the toughest workplace. The board holder is adjustable for different board sizes. With a simple hand gesture you could angle the table to an ergonmic working height.

Powder coated and electro galvanised
Work height 900 mm

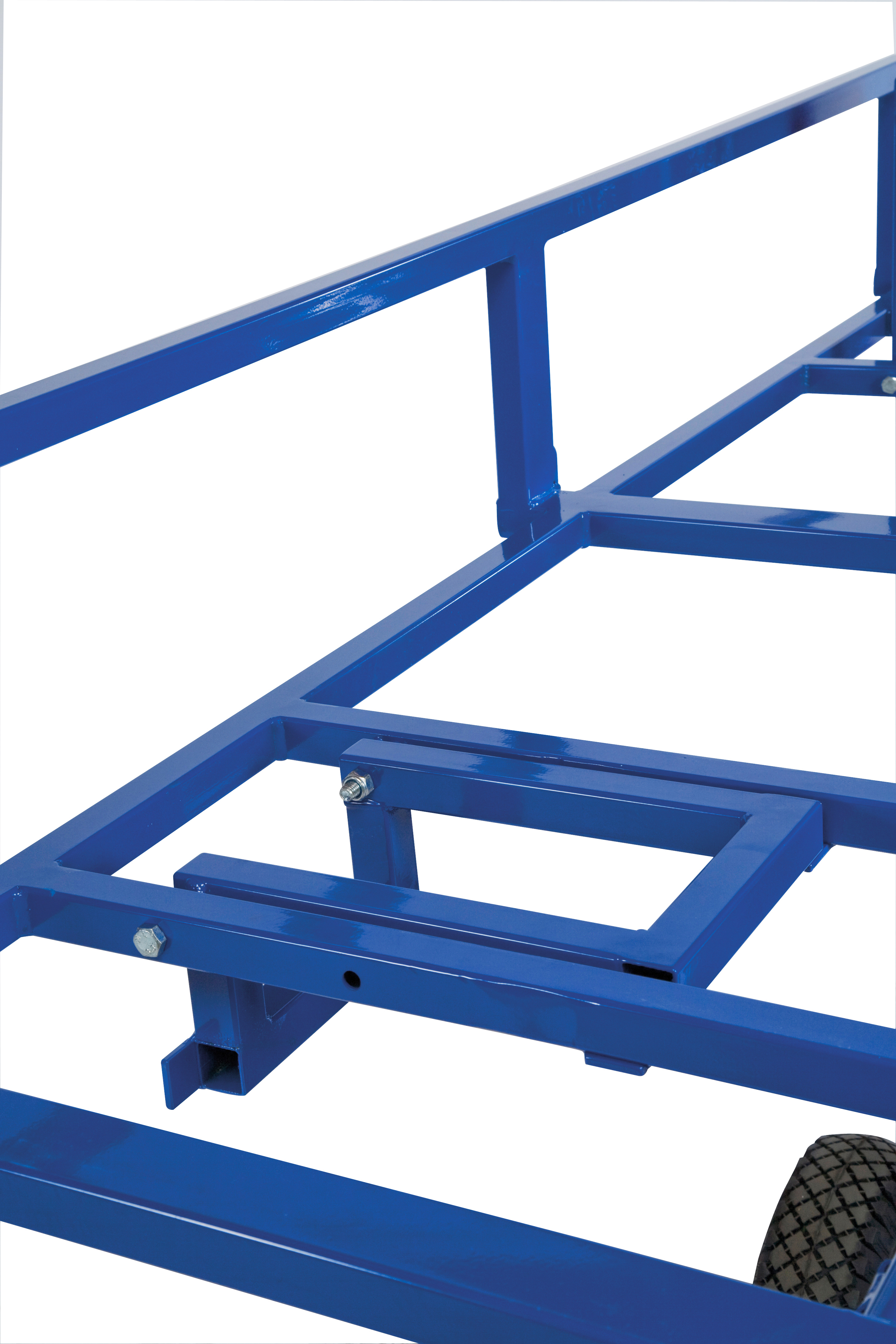

Adjustable for different board sizes
2 puncture free castors 300 x 100 mm
4 swivel wheels 2 with brakes 160 mm
Capacity 500 kg

In stock

11 pcs.

FIND YOUR DEALER
  • Construction

Variations

  ART.NO. Colour L x W X H (mm) Type of castors Braked castors Load (kg) Weight (kg) In stock
Board truck KM08200 KM08200 Blue 1900 x 700 x 1490 2 fixed 4 swivel 2 with brake Yes 500 105 11

Product information

  • Length - 1900 mm
  • Width - 700 mm
  • Height - 1490 mm
  • Static load - 500 kg
  • Freight volume - 2 m3
  • Gross weight - 105 kg
  • Net weight - 105 kg
  • Shelf dimensions (length) - 1860 mm
  • Shelf dimensions (width) - 1170 mm
  • Type of castors - 2 fixed 4 swivel 2 with brake
  • Castors diameter (mm) - 160

Castors

ART.NO. Description Diameter (mm)
3477IEP160P63 Swivel castor with total lock, tail end of castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, dustguard, plate fitting. Wheel centre made of Aluminium, Tread: black elastic-tyre, vulcanized, precision ball bearing 160
3470IEP160P63

Swivel castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, dustguard, plate fitting. Wheel centre made of Aluminium, Tread: black elastic-tyre, vulcanized, precision ball bearing

160
950335 300
