• Delivered in flat pack unassembled
  • 5 years warranty on all of our Trolleys
  • CE Certified

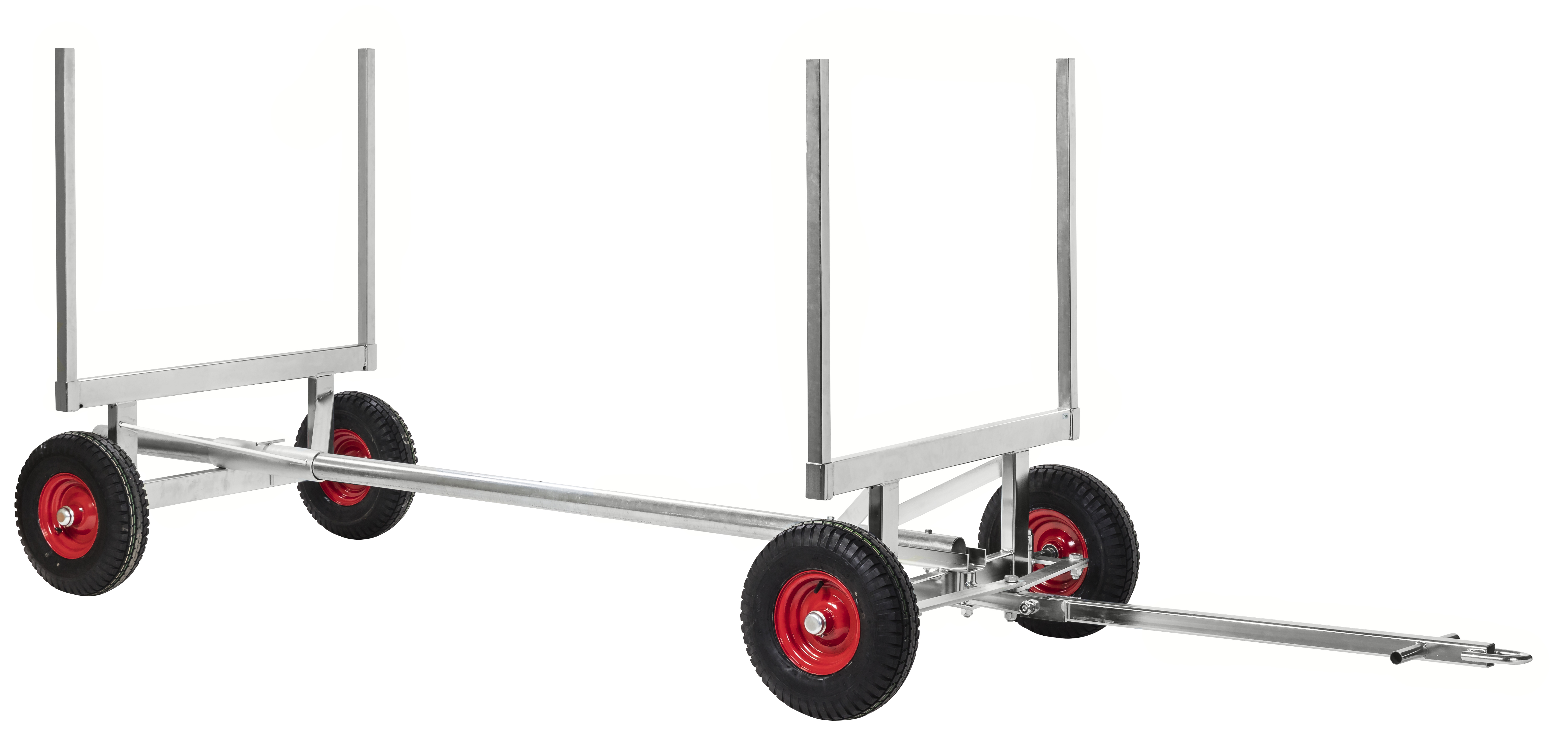

KM123-E | Material handling trucks

Robust electro galvainzed trolley for pipe material. Very easy to manage despite heavy loads.

Max. length between axles: 2920 mm
Adjustable lengths: 1420 mm, 2420 mm, 2920 mm
Tow bar with eye bolt
Comes with 4 separate corner posts
Height to platform: 605 mm
Distance between corner posts: 1160 mm
Towbar length: 1210 mm
Width: 1270 mm
Capacity: 2500 kg

In stock

2 pcs.

FIND YOUR DEALER
  • Construction
  • Outdoor
  • Logistic & Warehouse
  • Industry & Workshops

Variations

  ART.NO. Colour L x W X H (mm) Type of castors Braked castors Load (kg) Weight (kg) In stock
Material handling trucks KM123-E KM123-E Electro galvanised 3000 x 1270 x 600 4 fixed No 2500 120 2
Material handling trucks KM124 KM124 Electro galvanised 2800 x 608 x 700 2 fixed 4 swivel No 800 55 15
Material handling trucks KM124B KM124B Electro galvanised 2800 x 608 x 700 2 fixed 4 swivel 2 with brake Yes 800 56 15
Material handling trucks KM125 KM125 Blue 4000 x 1270 x 640 4 fixed No 3500 155 15
Material handling trucks KM125-E KM125-E Electro galvanised 4000 x 1270 x 640 4 fixed No 3500 155 7
Material handling trucks KM125-EPF KM125-EPF Electro galvanised 4000 x 1270 x 640 Puncture free wheels No 3500 155 3
Material handling trucks KM125PF KM125PF Blue 4000 x 1270 x 640 Puncture free wheels No 3500 155 1
Material handling trucks KM126 KM126 Blue 6000 x 1270 x 640 4 fixed No 3500 168 5
Material handling trucks KM126-E KM126-E Electro galvanised 6000 x 1270 x 640 4 fixed No 3500 155 5
Material handling trucks KM126-EPF KM126-EPF Electro galvanised 6000 x 1270 x 640 Puncture free wheels No 3500 168 3
Material handling trucks KM126PF KM126PF Blue 6000 x 1270 x 640 Puncture free wheels No 3500 168 1
Material handling trucks KM215 KM215 Blue 1600 x 600 x 750 2 fixed No 200 15 7
Material handling trucks KM215PF KM215PF Blue 1600 x 600 x 750 Puncture free wheels No 200 18 6

Product information

  • Length - 3000 mm
  • Width - 1270 mm
  • Height - 600 mm
  • Static load - 2500 kg
  • Freight volume - 0.7 m3
  • Gross weight - 120 kg
  • Net weight - 119.5 kg
  • Type of castors - 4 fixed
  • Castors diameter (mm) - 460

Documents

Castors

ART.NO. Description Diameter (mm)
HJUL460-1

Accessories

  ART.NO. Description Weight (kg)
Sign, A4 & A5 KMID-F125A4S KMID-F125A4S Sign, A4 & A5 0.9
Sign, A4 & A5 KMID-F125A4L KMID-F125A4L Sign, A4 & A5 0.94
Dividers KM125-AV KM125-AV Dividers 2.6
Sign, A4 & A5 KMID-F125A5L KMID-F125A5L Sign, A4 & A5 0.53
